LIS2MDLTR - STMicroelectronics

LIS2MDL Series 3.6V 50 Hz High Performance 3-Axis Digital Magnetic Sensor-LGA-12

Technical Details

Axis	X, Y, Z
China RoHS	Compliant
Country of Origin	Malta
Current Rating	200µA
Export Control Classification Number (ECCN) Code	EAR99
Height	700µm
Introduction Date	2017-05-12
Length	2mm
Lifecycle Status	Production
Max Operating Temperature	85°C
Max Supply Voltage	3.6V
Manufacturer Package Identifier	LGA-12-DM00170568
Min Operating Temperature	-40°C
Min Supply Voltage	1.71V
Mount	Surface Mount
Number of Terminals	12
Operating Supply Voltage	2.5V
Output Type	Digital
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000
Sensing Method	Magnetic

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

STMicroelectronics LIS2MDLTR | element14 APAC

element14 APAC

Datasheets

Lifecycle Status Indicator

Production

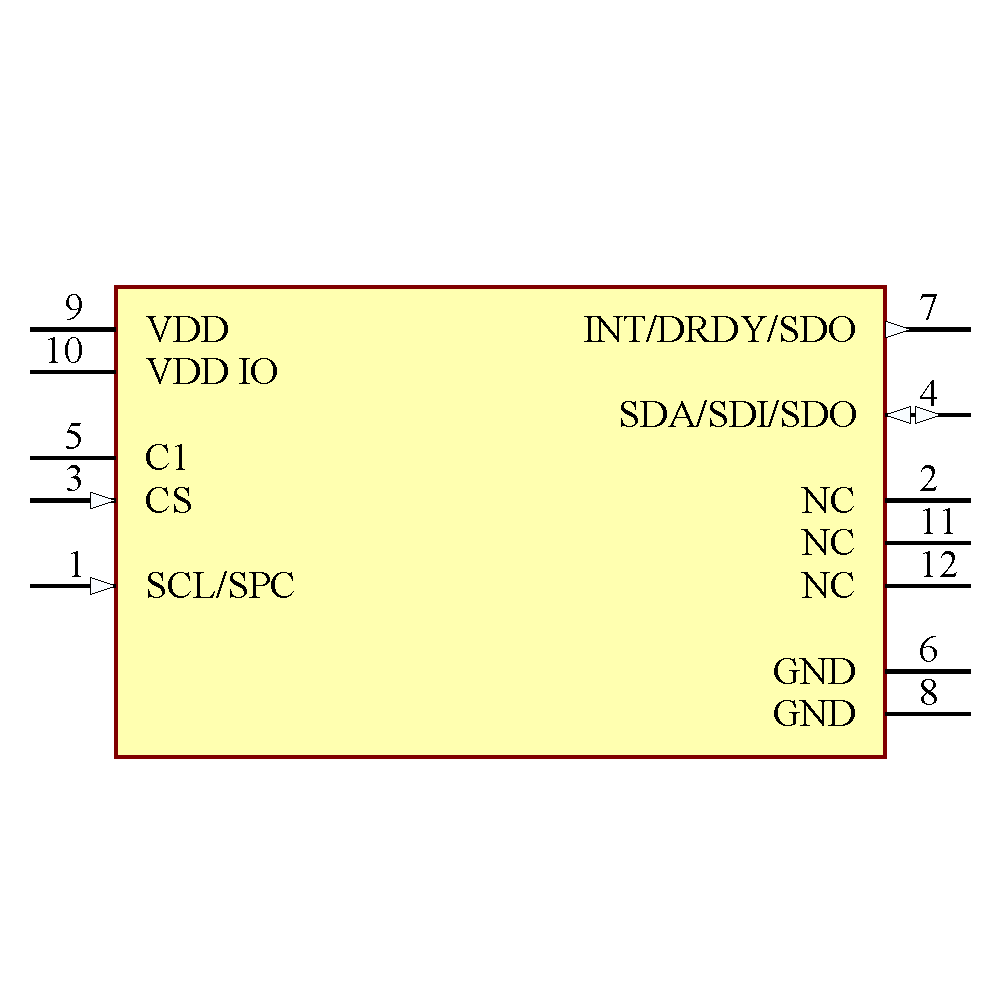

Symbol

LIS2MDLTR Symbol - STMicroelectronics

LIS2MDLTR Symbol - STMicroelectronics

LIS2MDLTR Symbol - STMicroelectronics

LIS2MDLTR Symbol - STMicroelectronics

‹ ›

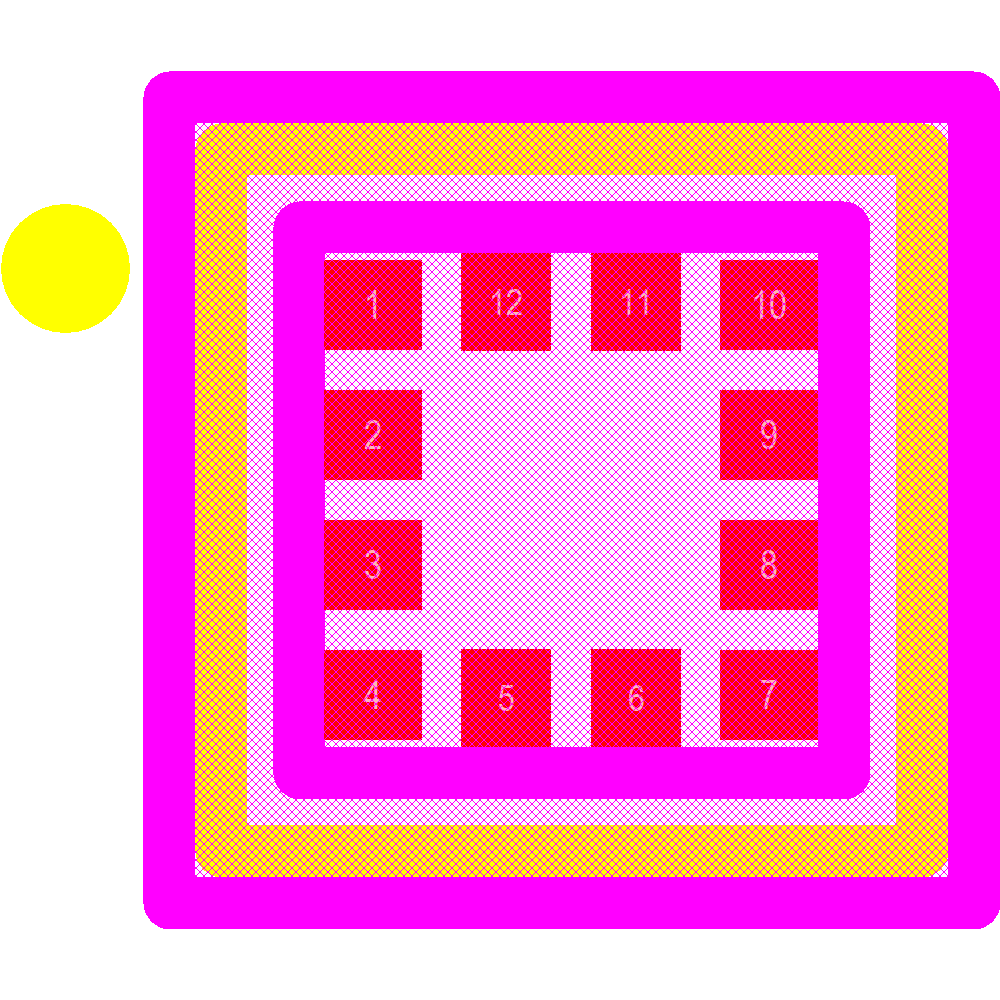

Footprint
