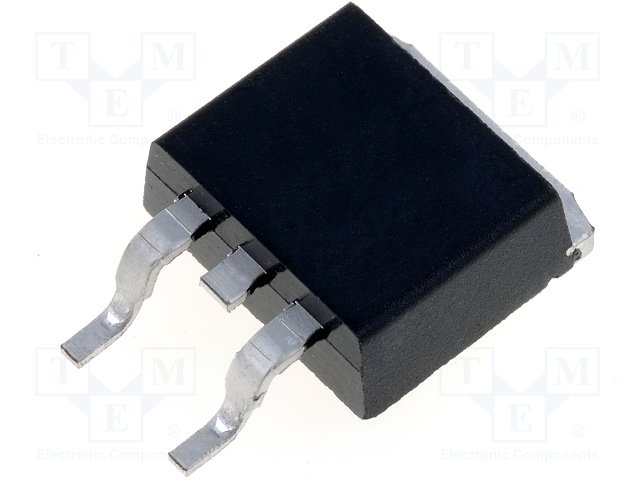

| Case/Package | TO-263-3 |
| Continuous Drain Current (ID) | 11A |
| Country of Origin | Mainland China |
| Drain to Source Resistance | 399mΩ |
| Drain to Source Voltage (Vdss) | 600V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Gate to Source Voltage (Vgs) | 30V |
| Input Capacitance | 545pF |
| Introduction Date | 2011-02-25 |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 178W |
| Min Breakdown Voltage | 600V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Power Dissipation | 178W |
| Rds On Max | 399mΩ |
| REACH SVHC | Yes |
| RoHS | Compliant |
STMicroelectronics
|
Obsolete
|
Toshiba
|
EOL
|
onsemi
|
Obsolete
|
Alpha & Omega Semiconductor
|
NRND
|
Infineon
|
Obsolete
|
