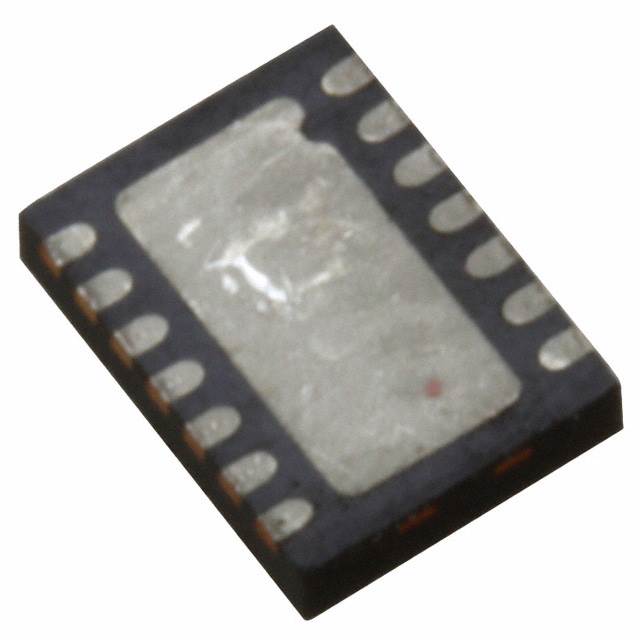

| Case/Package | LFCSP EP |
| Clock Sync | No |
| Contact Plating | Tin |
| Height | 800µm |
| Lead Free | Contains Lead |
| Lifecycle Status | Obsolete |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Duty Cycle | 84% |
| Max Input Voltage | 20V |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 125°C |
| Max Output Current | 30A |
| Max Output Voltage | 18V |
| Max Supply Voltage | 20V |
| Min Input Voltage | 2.95V |
| Min Operating Temperature | -40°C |
| Min Output Voltage | 600mV |
| Min Supply Voltage | 2.95V |
| Mount | Surface Mount |
| Nominal Supply Current | 1.1mA |
| Number of Output Phases | 1 |
| Number of Outputs | 1 |
| Number of Pins | 14 |
| Operating Supply Current | 1.1µA |
| Output Configuration | Positive |
| Output Voltage | 600mV |
| REACH SVHC | No |
| RoHS | Compliant |
| Switching Frequency | 300kHz |
| Synchronous Rectifier | Yes |
| Topology | Buck |
