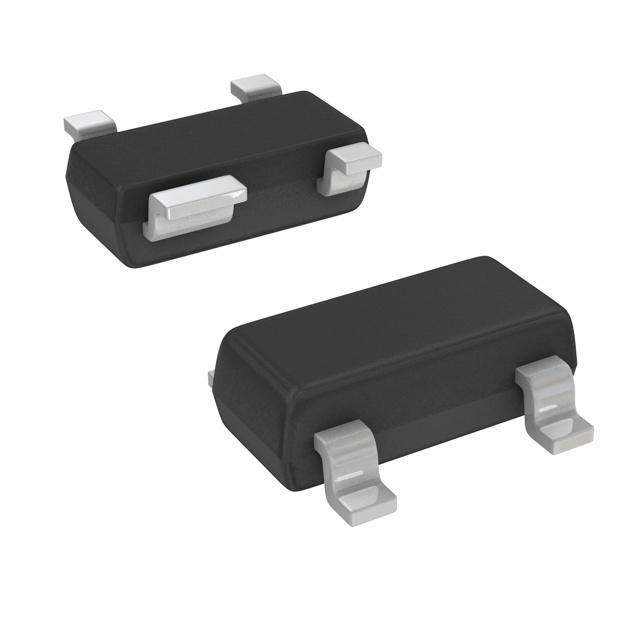

| Case/Package | SOT-143 |
| China RoHS | Compliant |
| Current Rating | 1A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Forward Voltage | 340mV |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.60 |
| Introduction Date | 1998-03-01 |
| Lead Free | Lead Free |
| Lifecycle Status | Obsolete |
| Max Current Rating | 1A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 250mW |
| Max Repetitive Reverse Voltage (Vrrm) | 15V |
| Max Reverse Leakage Current | 100nA |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Number of Pins | 4 |
| Number of Terminals | 4 |
| Output Current | 1A |
| Packaging | Tape & Reel |
| Peak Reverse Current | 100nA |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 1V |
| RoHS | Compliant |
| Voltage Rating (DC) | 15V |
