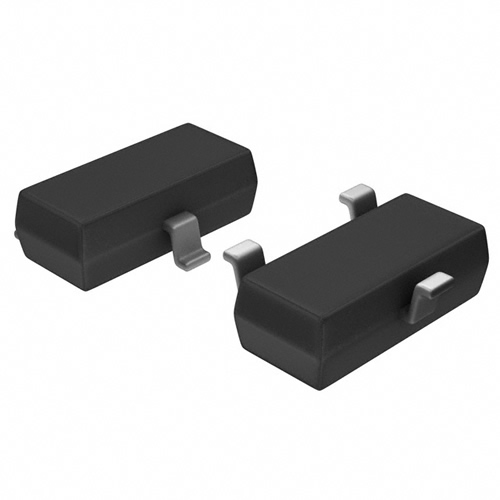

| Case/Package | SOT-23 |
| Element Configuration | Common Anode |
| Height | 1mm |
| Impedance | 40Ω |
| Lead Free | Contains Lead |
| Length | 3.05mm |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 300mW |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Contacts | 3 |
| Number of Elements | 2 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Polarity | Unidirectional |
| Power Dissipation | 300mW |
| Power Rating | 300mW |
| REACH SVHC | No |
| Reference Voltage | 5.6V |
| RoHS | Non-Compliant |
| Termination | SMD/SMT |
| Test Current | 5mA |
| Tolerance | 5% |
| Voltage Rating (DC) | 5.6V |
| Voltage Tolerance | 7.14% |
| Weight | 200.998119mg |
| Width | 1.4mm |
| Zener Current | 5mA |
| Zener Voltage | 5.6V |
