| Breakdown Voltage | 7V |
| Capacitance | 20pF |

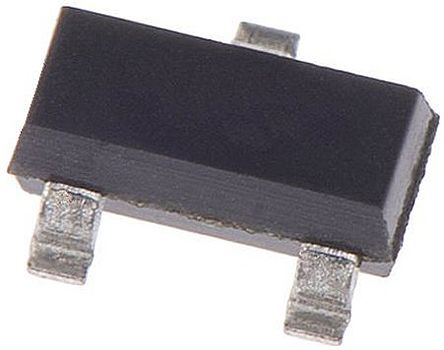

| Case/Package | SOT-23 |
| China RoHS | Compliant |
| Clamping Voltage | 11.5V |
| Composition | Zener |
| Country of Origin | Mainland China |
| Depth | 1.3mm |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| ESD Protection | Yes |
| Height | 1.1mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2012-02-03 |
| Lead Free | Lead Free |
| Leakage Current | 100nA |
| Length | 2.9mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 8V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 300mW |
| Max Reverse Leakage Current | 100nA |
| Max Surge Current | 6A |
| Min Breakdown Voltage | 6V |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 2 |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 6A |
| Peak Pulse Power | 84W |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 5V |
| RoHS | Compliant |
| Schedule B | 8536300000, 8536300000|8536300000|8536300000|8536300000|8536300000 |
| Termination | SMD/SMT |
| Test Current | 1mA |
| Width | 1.4mm |
| Working Voltage | 5V |
