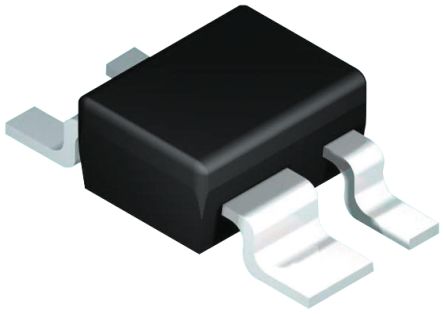

| Case/Package | SOT-143 |
| China RoHS | Compliant |
| Country of Origin | Mainland China |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Dual |
| ESD Protection | Yes |
| Height | 1mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2013-08-05 |
| Length | 3mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 9V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 400mW |
| Max Reverse Leakage Current | 100nA |
| Min Breakdown Voltage | 6V |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 2 |
| Number of Channels | 2 |
| Number of Elements | 1 |
| Number of Pins | 4 |
| Number of Terminals | 4 |
| Packaging | Cut Tape (CT) |
| Peak Pulse Current | 5A |
| Peak Pulse Power | 400mW |
| Polarity | Unidirectional |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 5.5V |
| RoHS | Compliant |
| Schedule B | 8536300000, 8536300000|8536300000|8536300000|8536300000|8536300000 |
| Test Current | 1mA |
| Width | 1.4mm |
