| Breakdown Voltage | 6.8V |

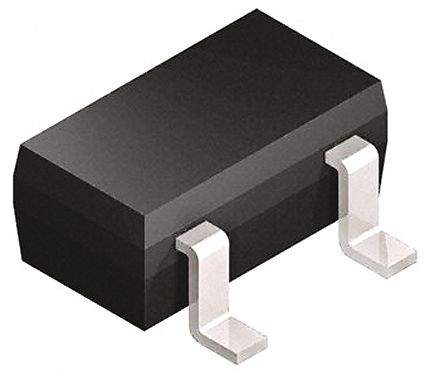

| Case/Package | SOT-23 |
| China RoHS | Compliant |
| Clamping Voltage | 9.6V |
| Composition | Zener |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Depth | 1.3mm |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Common Anode |
| ESD Protection | Yes |
| Height | 1mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2002-06-04 |
| Lead Free | Lead Free |
| Leakage Current | 500nA |
| Length | 2.9mm |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 7.14V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 225mW |
| Max Reverse Leakage Current | 500nA |
| Min Breakdown Voltage | 6.46V |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Number of Unidirectional Channels | 2 |
| Peak Pulse Current | 2.5A |
| Peak Pulse Power | 24W |
| Polarity | Unidirectional |
| Power Dissipation | 225mW |
| Power Line Protection | No |
| Power Rating | 24W |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 6.46V |
| Reverse Standoff Voltage | 4.5V |
| RoHS | Compliant |
| Schedule B | 8536300000|8536300000|8536300000|8536300000|8536300000 |
| Termination | SMD/SMT |
| Test Current | 1mA |
| Voltage Rating (DC) | 4.5V |
| Width | 2.4mm |
| Working Voltage | 4.5V |
