| Breakdown Voltage | 6.75V |
| Capacitance | 230pF |

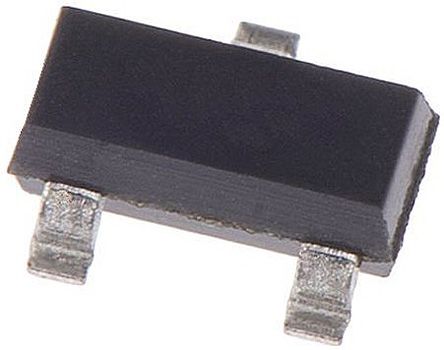

| Case/Package | SOT-23 |
| China RoHS | Compliant |
| Clamping Voltage | 9.8V |
| Composition | Zener |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Depth | 1.3mm |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Common Anode |
| ESD Protection | Yes |
| Height | 1mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2010-04-22 |
| Lead Free | Lead Free |
| Leakage Current | 10µA |
| Length | 2.9mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 7.3V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 300W |
| Max Reverse Leakage Current | 10µA |
| Min Breakdown Voltage | 6.2V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Number of Unidirectional Channels | 2 |
| Peak Pulse Current | 17A |
| Peak Pulse Power | 300W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Reverse Standoff Voltage | 5V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Test Current | 1mA |
| Width | 1.3mm |
| Working Voltage | 5V |
