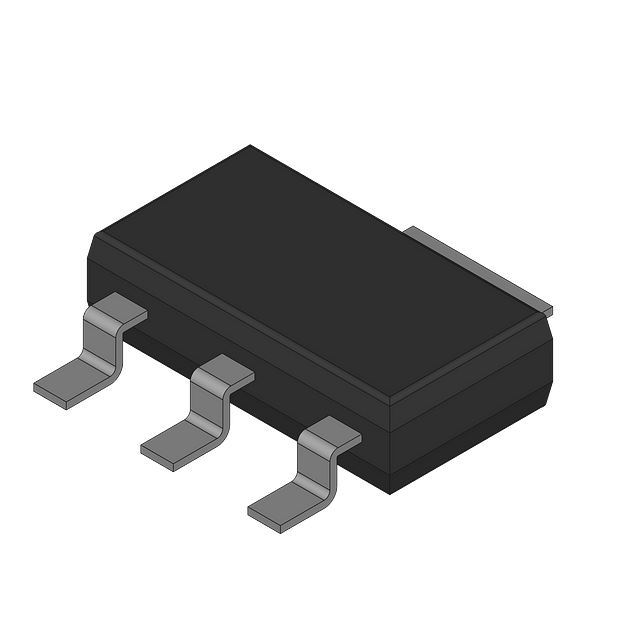

| Case/Package | TO-261-4 |
| China RoHS | Compliant |
| Collector Base Voltage (VCBO) | 5V |
| Collector Emitter Breakdown Voltage | 45V |
| Collector Emitter Saturation Voltage | 1.3V |
| Collector Emitter Voltage (VCEO) | 45V |
| Emitter Base Voltage (VEBO) | 5V |
| hFE Min | 2000 |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 45V |
| Max Collector Current | 1A |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 1.5W |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 4 |
| Number of Terminals | 4 |
| Package Quantity | 1000 |
| Packaging | Tape & Reel |
| Polarity | NPN |
| Power Dissipation | 1.5W |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Transition Frequency | 200MHz |
Infineon
|
Obsolete
|
onsemi
|
Obsolete
|
onsemi
|
Production
|
onsemi
|
Obsolete
|
onsemi
|
Production
|
