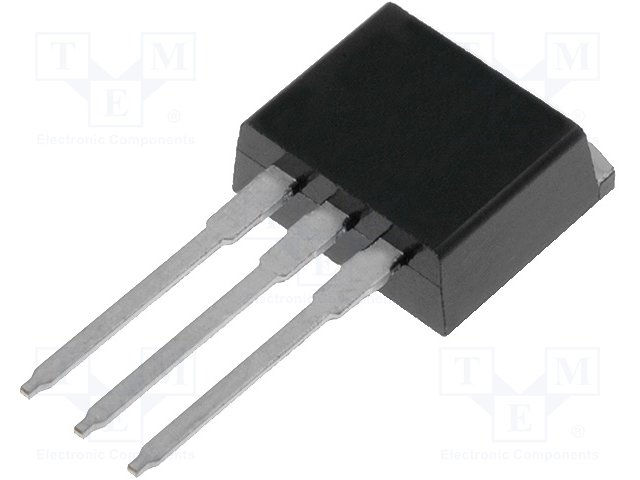

| Case/Package | TO-262-3 |
| China RoHS | Compliant |
| Contact Plating | Tin |
| Continuous Drain Current (ID) | 6.9A |
| Drain to Source Resistance | 800mΩ |
| Drain to Source Voltage (Vdss) | 900V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Fall Time | 32ns |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Input Capacitance | 1.1nF |
| Introduction Date | 2008-07-30 |
| Lead Free | Lead Free |
| Lifecycle Status | Obsolete |
| Max Dual Supply Voltage | 900V |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 104W |
| Min Breakdown Voltage | 900V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| On-State Resistance | 800mΩ |
| Package Quantity | 500 |
| Power Dissipation | 104W |
| Rds On Max | 800mΩ |
| REACH SVHC | Yes |
| Rise Time | 20ns |
| RoHS | Compliant |
| Turn-Off Delay Time | 400ns |
| Turn-On Delay Time | 70ns |
