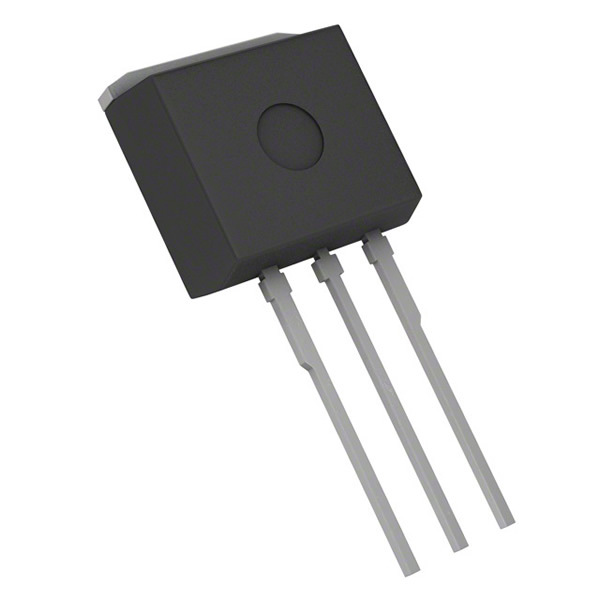

| Case/Package | TO-262-3 |
| Contact Plating | Tin |
| Continuous Drain Current (ID) | 80A |
| Current Rating | 80A |
| Drain to Source Breakdown Voltage | 55V |
| Drain to Source Resistance | 8mΩ |
| Drain to Source Voltage (Vdss) | 55V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Fall Time | 32ns |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Input Capacitance | 3.66nF |
| Introduction Date | 2004-11-30 |
| Lead Free | Contains Lead |
| Lifecycle Status | Obsolete |
| Max Dual Supply Voltage | 55V |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 300W |
| Min Breakdown Voltage | 55V |
| Min Operating Temperature | -55°C |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Power Dissipation | 300W |
| Rds On Max | 8mΩ |
| REACH SVHC | Yes |
| Rise Time | 53ns |
| RoHS | Compliant |
| Turn-Off Delay Time | 54ns |
| Voltage Rating (DC) | 55V |
