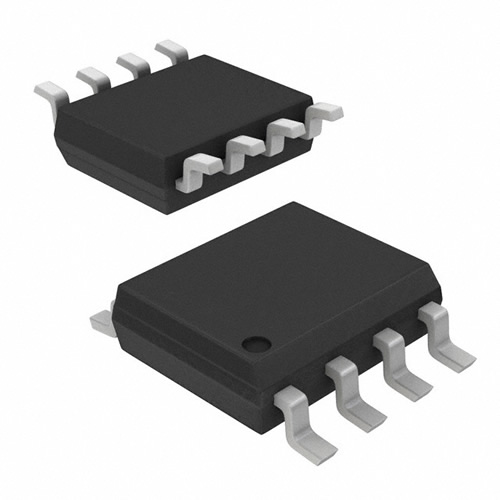

| Case/Package | SOP |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height - Seated (Max) | 1.748mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 1998-01-01 |
| Length | 4.9mm |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 70°C |
| Max Reset Threshold Voltage | 3V |
| Max Supply Current | 40µA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | 0°C |
| Min Reset Threshold Voltage | 2.85V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Pins | 8 |
| Number of Terminals | 8 |
| Number of Voltages Monitored | 1 |
| Operating Supply Voltage | 3.3V |
| Packaging | Tape and Reel |
| Power Dissipation | 471mW |
| REACH SVHC | Yes |
| Reset | Active Low |
| RoHS | Compliant |
| Temperature Grade | Commercial |
| Terminal Pitch | 1.27mm |
| Type | Simple Reset/Power-On Reset |
| Watchdog Timer | Yes |
| Width | 3.895mm |
