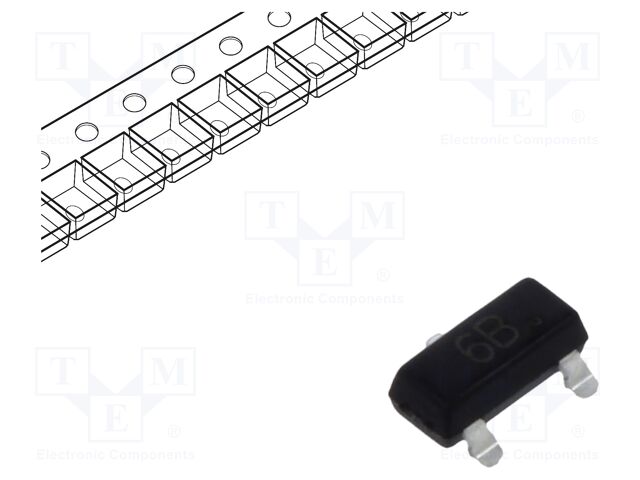

| Case/Package | SOT-23 |
| China RoHS | Compliant |
| Collector Base Voltage (VCBO) | 50V |
| Collector Emitter Breakdown Voltage | 45V |
| Collector Emitter Saturation Voltage | 700mV |
| Collector Emitter Voltage (VCEO) | 45V |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 5V |
| Frequency | 100MHz |
| Gain Bandwidth Product | 100MHz |
| hFE Min | 160 |
| Introduction Date | 2002-04-09 |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 45V |
| Max Collector Current | 500mA |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 300mW |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Polarity | NPN |
| Power Dissipation | 310mW |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080 |
| Transition Frequency | 100MHz |
