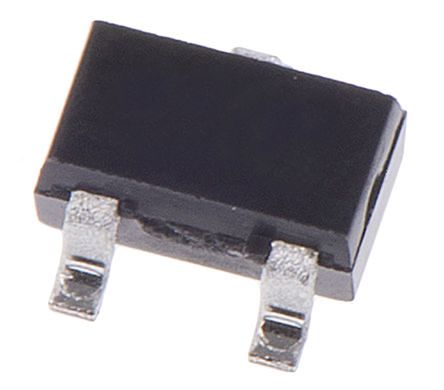

| Case/Package | SOT-323-3 |
| China RoHS | Compliant |
| Collector Base Voltage (VCBO) | 50V |
| Collector Emitter Breakdown Voltage | 45V |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 45V |
| Contact Plating | Tin |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 6V |
| Height | 1.1mm |
| hFE Min | 110 |
| Introduction Date | 1992-12-30 |
| Length | 2.2mm |
| Lifecycle Status | Production |
| Max Collector Current | 100mA |
| Max Frequency | 100MHz |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 200mW |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Polarity | NPN |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Transition Frequency | 100MHz |
| Width | 1.35mm |
