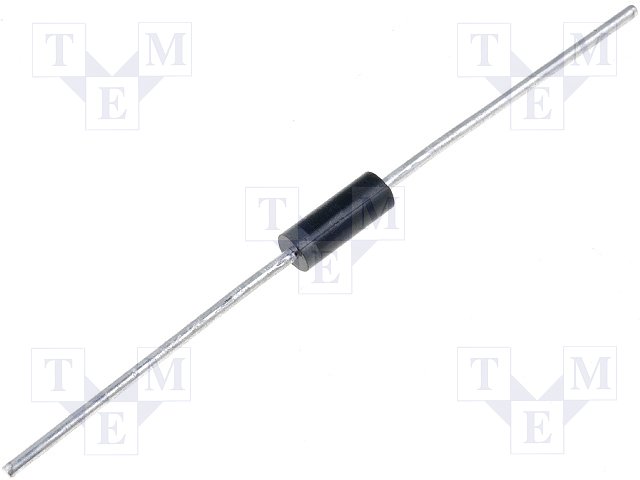

| Case/Package | Axial |
| China RoHS | Non-Compliant |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| ESD Protection | Yes |
| Forward Voltage | 1.2V |
| Halogen Free | Halogen Free |
| Height | 3.68mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Impedance | 2Ω |
| Introduction Date | 2000-06-28 |
| Lead Free | Lead Free |
| Length | 8.89mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 200°C |
| Max Power Dissipation | 5W |
| Max Reverse Leakage Current | 10µA |
| Min Operating Temperature | -65°C |
| Number of Elements | 1 |
| Number of Pins | 0 |
| Number of Terminals | 2 |
| Packaging | Tape and Reel |
| Peak Reverse Current | 10µA |
| Polarity | Unidirectional |
| Power Dissipation | 5W |
| Power Rating | 5W |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reference Voltage | 8.7V |
| RoHS | Compliant |
| Schedule B | 8541100050, 8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|8541100050|85 |
| Test Current | 150mA |
| Tolerance | 5% |
| Voltage Rating (DC) | 8.7V |
| Voltage Tolerance | 5% |
| Weight | 4.535924g |
| Width | 3.68mm |
| Working Voltage | 8.7V |
| Zener Current | 150mA |
| Zener Voltage | 8.7V |
