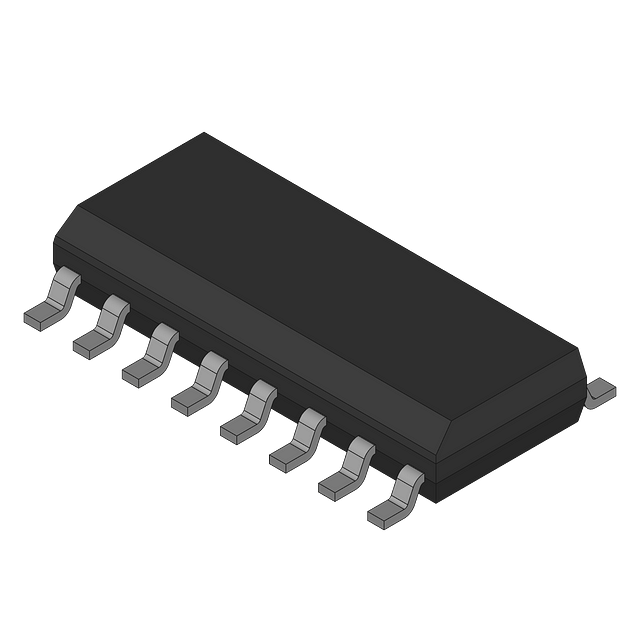

| Case/Package | SOP |
| Clock Edge Trigger Type | Positive Edge |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Frequency | 140MHz |
| Height - Seated (Max) | 2.1mm |
| High Level Output Current | -24mA |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.01 |
| Introduction Date | 1987-07-01 |
| Lead Free | Lead Free |
| Length | 10.2mm |
| Lifecycle Status | Obsolete |
| Load Capacitance | 50pF |
| Logic Function | D-Type, Flip-Flop |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 6 |
| Number of Bits per Element | 6 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Input Lines | 3 |
| Number of Output Lines | 6 |
| Number of Pins | 16 |
| Number of Terminals | 16 |
| Operating Supply Voltage | 5V |
| Polarity | Non-Inverting |
| Propagation Delay | 11.5ns |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Temperature Grade | Industrial |
| Terminal Pitch | 1.27mm |
| Turn-On Delay Time | 7ns |
| Width | 5.3mm |
