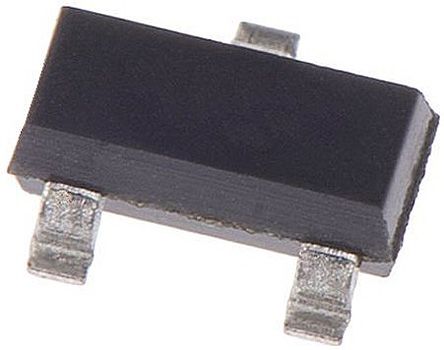

| Case/Package | SOT-23-3 |
| China RoHS | Compliant |
| Collector Base Voltage (VCBO) | 50V |
| Collector Emitter Breakdown Voltage | 45V |
| Collector Emitter Saturation Voltage | 600mV |
| Collector Emitter Voltage (VCEO) | 45V |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Current Rating | 100mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Emitter Base Voltage (VEBO) | 6V |
| Frequency | 100MHz |
| Gain Bandwidth Product | 100MHz |
| Height | 1.11mm |
| hFE Min | 420 |
| Introduction Date | 1999-01-01 |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Breakdown Voltage | 45V |
| Max Collector Current | 100mA |
| Max Frequency | 100MHz |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 300mW |
| Min Operating Temperature | -55°C |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Dissipation | 225mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8541210080, 8541210080|8541210080|8541210080|8541210080|8541210080 |
| Transition Frequency | 100MHz |
| Voltage Rating (DC) | 45V |
| Width | 1.3mm |
