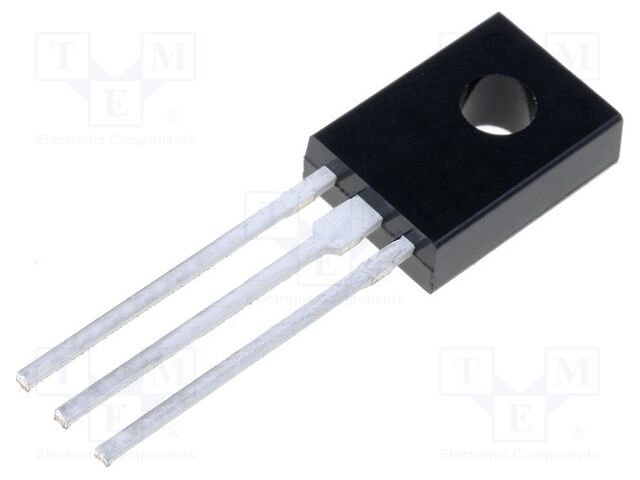

BD14010STU

BD14010STU

onsemi
BD14010STU
EOL

Bipolar (BJT) Single Transistor, PNP, -80 V, 12.5 W, -1.5 A, 63
Case/Package TO-126
China RoHS Compliant
Collector Base Voltage (VCBO) -80V
Collector Emitter Breakdown Voltage 80V
Collector Emitter Saturation Voltage -500mV
Collector Emitter Voltage (VCEO) 80V
Contact Plating Tin
Country of Origin Mainland China
Current Rating -1.5A
Export Control Classification Number (ECCN) Code EAR99
Element Configuration Single
Emitter Base Voltage (VEBO) -5V
Height 14.2mm
hFE Min 63
Introduction Date 2000-12-20
Lead Free Lead Free
Length 8mm
Lifecycle Status EOL
Manufacturer Lifecycle Status LAST SHIPMENTS
Max Collector Current 1.5A
Max Junction Temperature (Tj) 150°C
Max Operating Temperature 150°C
Max Power Dissipation 12.5W
Min Operating Temperature -55°C
Mount Through Hole
Number of Elements 1
Number of Pins 3
Number of Terminals 3
Polarity PNP
Power Dissipation 1.25W
Radiation Hardening No
REACH SVHC Yes
RoHS Compliant
Schedule B 8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080
Voltage Rating (DC) -80V
Weight 761mg
Width 3.25mm

Other Distributors

Farnell - 2453824

€1.05
Buy
Stock Break
DE: 0
1 €1.05
10 €0.704
100 €0.533
1000 €0.37

Avnet - BD14010STU

-
Buy
Stock Break
US: 0

element14 APAC - 2453824

S$1.43
Buy
Stock Break
SG: 0
1 S$1.43
10 S$1.01
100 S$0.848
1000 S$0.598

Newark - BD14010STU

-
Buy
Stock Break
US: 0

Worldway Electronics - BD14010STU

$0.3172
Buy
Stock Break
HK: 59,677
10 $0.3172
100 $0.3075
1000 $0.2913

Fmall Co., Limited - BD14010STU

$0.6547
Buy
Stock Break
HK: 35,930
1 $0.6547
10 $0.6547
100 $0.6125
1000 $0.5773

Anlinkda - BD14010STU

$0.426
Buy
Stock Break
HK: 53,280
1 $0.426
10 $0.381
100 $0.33
1000 $0.319

ZTZ Technology Limited - BD14010STU

$0.3038
Buy
Stock Break
CN: 8,300
1 $0.3038
10 $0.2744
100 $0.2548
1000 $0.2352

Chipsmall Limited - BD14010STU

$1.2576
Buy
Stock Break
CN: 3,840
1 $1.2576
10 $0.8384
100 $0.503
1000 $0.4192

ALLICDATA ELECTRONICS - BD14010STU

$0.34
Buy
Stock Break
HK: 1,091
1 $0.34
10 $0.3298
100 $0.323
1000 $0.3162

XingHuan International - BD14010STU

-
Buy
Stock Break
CN: 55,000

Lingto Electronic Ltd. - BD14010STU

$0.75
Buy
Stock Break
CN: 15,540
1 $0.75
10 $0.72
100 $0.675
1000 $0.6675
