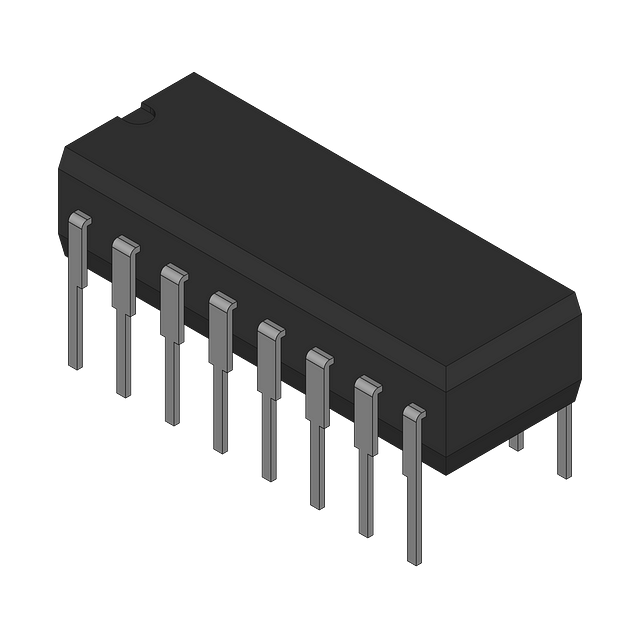

| Case/Package | DIP |
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 45MHz |
| Height - Seated (Max) | 5.08mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 1989-05-01 |
| Lead Free | Lead Free |
| Length | 19.305mm |
| Lifecycle Status | Obsolete |
| Logic Function | OR, Shift Register |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Input Lines | 9 |
| Number of Output Lines | 1 |
| Number of Pins | 16 |
| Number of Terminals | 16 |
| Operating Supply Voltage | 5V |
| Propagation Delay | 14ns |
| RoHS | Compliant |
| Temperature Grade | Commercial |
| Terminal Pitch | 2.54mm |
| Turn-On Delay Time | 22ns |
| Width | 7.62mm |
