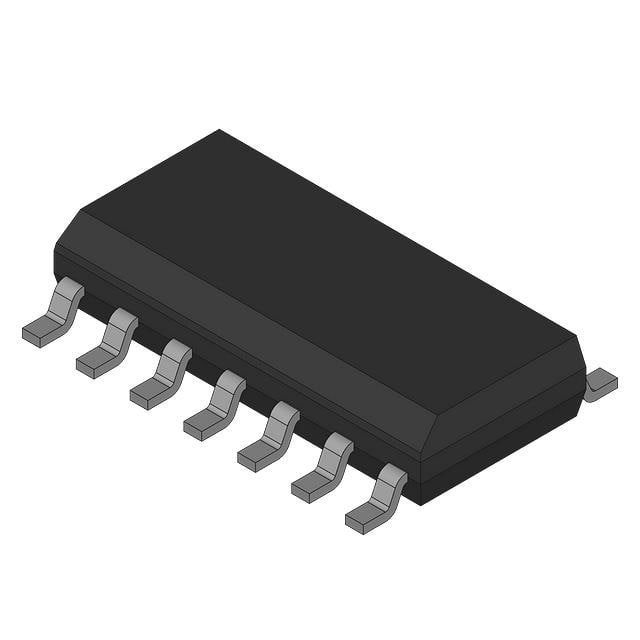

| Case/Package | SOP |
| China RoHS | Compliant |
| Height - Seated (Max) | 2.05mm |
| High Level Output Current | -24mA |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 1999-01-01 |
| Length | 10.2mm |
| Lifecycle Status | Obsolete |
| Load Capacitance | 50pF |
| Logic Function | XOR |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Gates | 4 |
| Number of Inputs | 2 |
| Number of Outputs | 1 |
| Number of Pins | 14 |
| Number of Terminals | 14 |
| Operating Supply Voltage | 5V |
| Packaging | Tape and Reel |
| Propagation Delay | 10.5ns |
| Quiescent Current | 4µA |
| RoHS | Compliant |
| Schmitt Trigger Input | No |
| Temperature Grade | Industrial |
| Terminal Pitch | 1.27mm |
| Turn-On Delay Time | 10.5ns |
| Width | 5.275mm |
