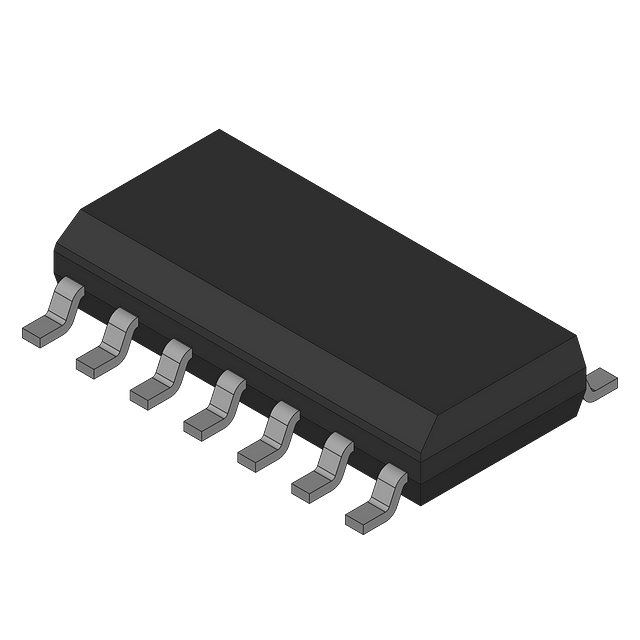

| Case/Package | SOP |
| China RoHS | Non-Compliant |
| Height - Seated (Max) | 1.75mm |
| High Level Output Current | 8mA |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 1997-06-01 |
| Lead Free | Contains Lead |
| Length | 8.65mm |
| Lifecycle Status | Obsolete |
| Load Capacitance | 50pF |
| Logic Function | OR, XOR |
| Low Level Output Current | 8mA |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Circuits | 4 |
| Number of Gates | 4 |
| Number of Inputs | 2 |
| Number of Pins | 14 |
| Number of Terminals | 14 |
| Operating Supply Voltage | 3.3V |
| Packaging | Tape & Reel (TR) |
| Propagation Delay | 10ns |
| Quiescent Current | 2µA |
| REACH SVHC | No |
| RoHS | Non-Compliant |
| Schmitt Trigger Input | No |
| Temperature Grade | Industrial |
| Terminal Pitch | 1.27mm |
| Width | 3.9mm |
