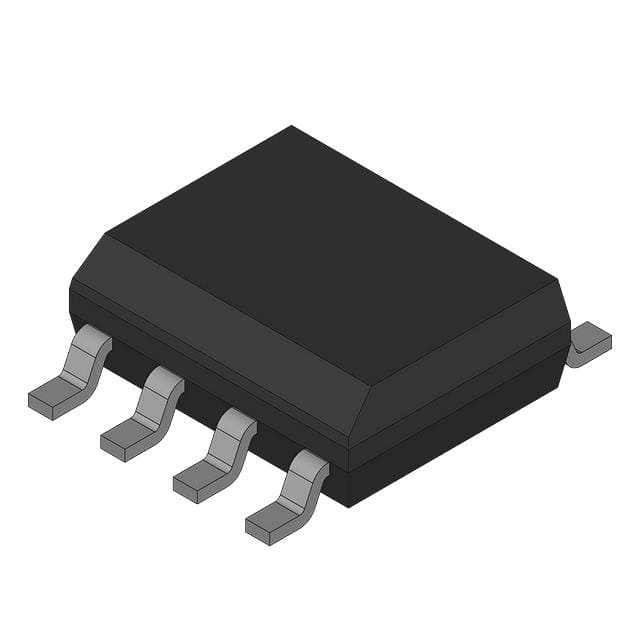

| Case/Package | SOP |
| Data Rate | 250kbps |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height - Seated (Max) | 1.75mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 2004-04-02 |
| Lead Free | Contains Lead |
| Length | 4.9mm |
| Lifecycle Status | Obsolete |
| Low Level Output Current | 4mA |
| Max Operating Temperature | 85°C |
| Max Supply Current | 140µA |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Receivers | 1 |
| Number of Terminals | 8 |
| Number of Transmitters | 1 |
| Operating Supply Voltage | 5V |
| Packaging | Bulk |
| Propagation Delay | 2µs |
| REACH SVHC | No |
| RoHS | Non-Compliant |
| Temperature Grade | Industrial |
| Terminal Pitch | 1.27mm |
| Width | 3.9mm |
