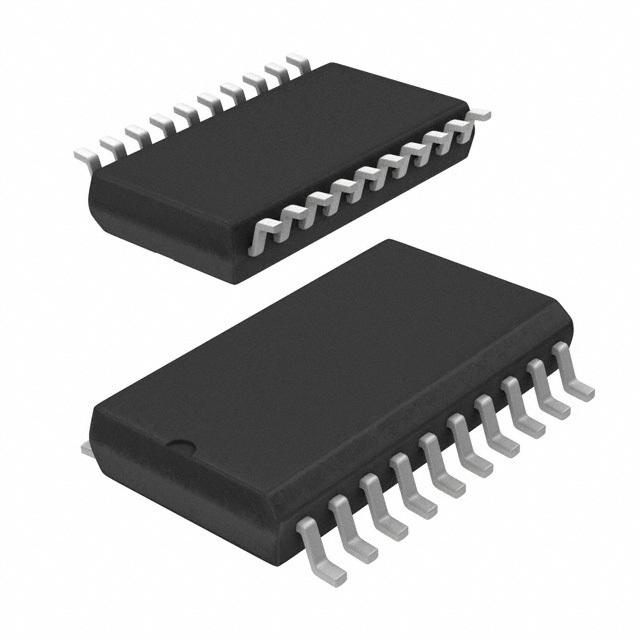

| Case/Package | SOP |
| China RoHS | Compliant |
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 20MHz |
| Height - Seated (Max) | 2.65mm |
| High Level Output Current | -4mA |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.60 |
| Introduction Date | 1980-01-04 |
| Length | 12.8mm |
| Lifecycle Status | Obsolete |
| Load Capacitance | 50pF |
| Logic Function | D-Type, Flip-Flop |
| Low Level Output Current | 4mA |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Input Lines | 8 |
| Number of Output Lines | 8 |
| Number of Pins | 20 |
| Number of Terminals | 20 |
| Operating Supply Voltage | 5V |
| Polarity | Non-Inverting |
| Propagation Delay | 45ns |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Temperature Grade | Military |
| Terminal Pitch | 1.27mm |
| Turn-On Delay Time | 19ns |
| Voltage | 5V |
| Width | 7.5mm |
