| Breakdown Voltage | 440V |

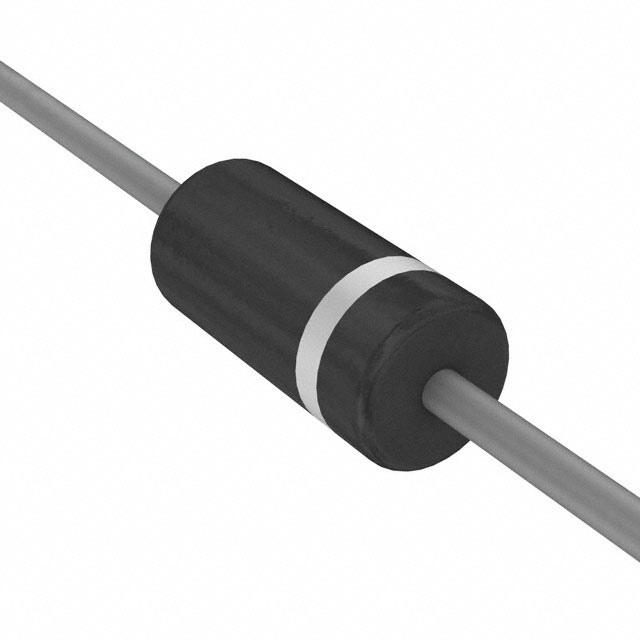

| Case/Package | DO-15 |
| China RoHS | Non-Compliant |
| Clamping Voltage | 776V |
| Composition | Zener |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 1980-01-04 |
| Leakage Current | 500µA |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 462V |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 5W |
| Max Reverse Leakage Current | 500µA |
| Min Breakdown Voltage | 418V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Bidirectional Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 5.2A |
| Peak Pulse Power | 600W |
| Peak Reverse Current | 500nA |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 418V |
| Reverse Standoff Voltage | 376V |
| RoHS | Compliant |
| Test Current | 1mA |
EIC Semiconductor
|
Production
|
Taiwan Semiconductor
|
Obsolete
|
MCC
|
Production
|
STMicroelectronics
|
Obsolete
|
Taiwan Semiconductor
|
Production
|
