| Breakdown Voltage | 320V |
| Capacitance | 35pF |

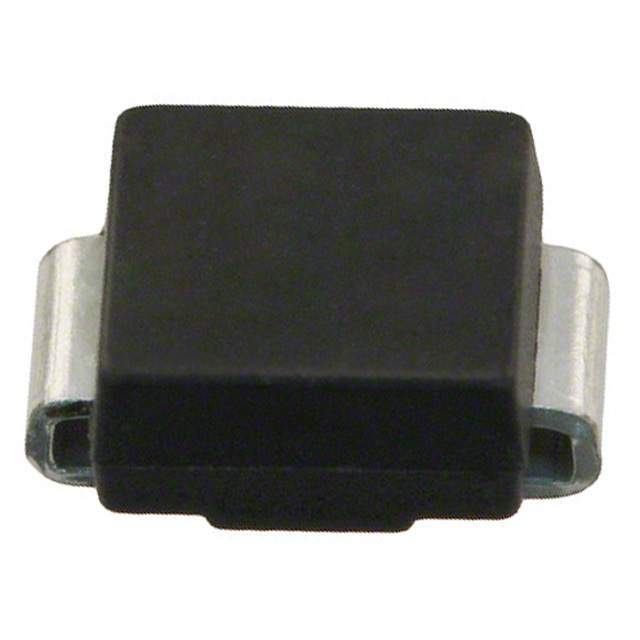

| Case/Package | SMB |
| China RoHS | Non-Compliant |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 2.45mm |
| Height - Seated (Max) | 2.65mm |
| Hold Current | 150mA |
| Harmonized Tariff Schedule (HTS) Code | 8541.30.00.80 |
| Introduction Date | 1980-01-04 |
| Lead Free | Lead Free |
| Length | 4.325mm |
| Lifecycle Status | Obsolete |
| Max Breakdown Voltage | 400V |
| Max Forward Surge Current (Ifsm) | 100A |
| Max Operating Temperature | 150°C |
| Max Reverse Leakage Current | 2µA |
| Max Reverse Voltage (DC) | 320V |
| Max Surge Current | 500A |
| Min Breakdown Voltage | 320V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 290V |
| Packaging | Cut Tape |
| Peak Pulse Current | 300A |
| Polarity | Bidirectional |
| REACH SVHC | No |
| Reverse Standoff Voltage | 290V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Voltage Rating (DC) | 320V |
| Width | 3.625mm |
