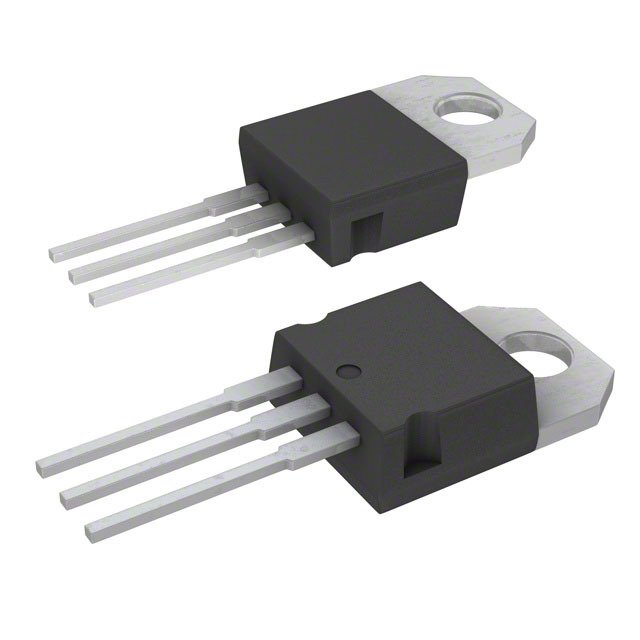

| Case/Package | TO-220 |
| China RoHS | Non-Compliant |
| Contact Plating | Tin |
| Continuous Drain Current (ID) | 50A |
| Current | 50A |
| Current Rating | 50A |
| Drain to Source Breakdown Voltage | 100V |
| Drain to Source Resistance | 27mΩ |
| Drain to Source Voltage (Vdss) | 100V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Gate to Source Voltage (Vgs) | 20V |
| Input Capacitance | 6nF |
| Introduction Date | 1998-06-01 |
| Lead Free | Contains Lead |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 150W |
| Min Breakdown Voltage | 100V |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Rds On Max | 27mΩ |
| REACH SVHC | Yes |
| Rise Time | 135ns |
| RoHS | Compliant |
| Voltage | 100V |
| Voltage Rating (DC) | 100V |
