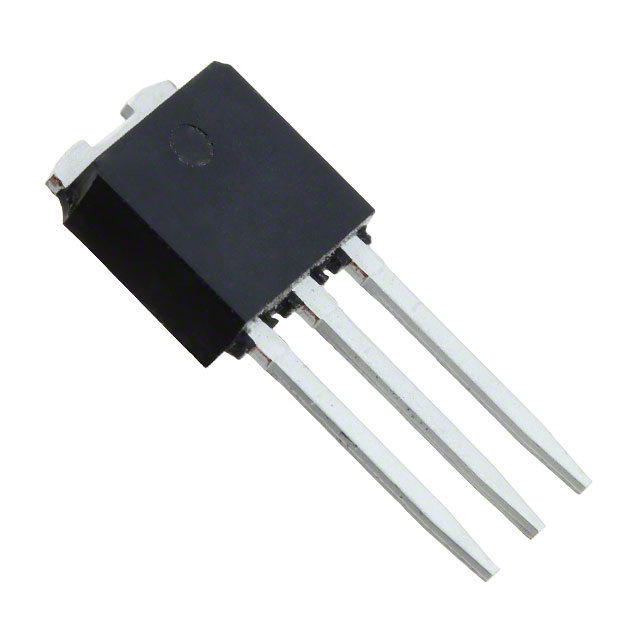

| Case/Package | TO-251-3 |
| China RoHS | Non-Compliant |
| Country of Origin | Mainland China |
| Current Rating | 7.6A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Hold Current | 5mA |
| Harmonized Tariff Schedule (HTS) Code | 8541.30.00.80 |
| Introduction Date | 1980-01-04 |
| Lead Free | Lead Free |
| Leakage Current | 2mA |
| Lifecycle Status | Production |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 125°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Max RMS Current | 12A |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Peak Non-Repetitive Surge Current | 110A |
| Radiation Hardening | No |
| REACH SVHC | No |
| RMS Current (Irms) | 12A |
| RoHS | Compliant |
| Voltage Rating (DC) | 600V |
