| Breakdown Voltage | 15.1V |

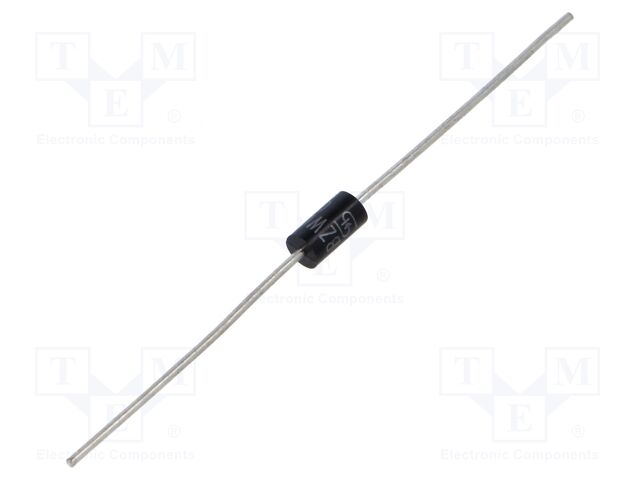

| Case/Package | DO-15 |
| China RoHS | Non-Compliant |
| Clamping Voltage | 21.2V |
| Contact Plating | Tin |
| Country of Origin | Mainland China |
| Diameter | 3.53mm |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Forward Voltage | 1V |
| Height | 3.6mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2005-11-28 |
| Lead Free | Lead Free |
| Length | 7.6mm |
| Lifecycle Status | Production |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Breakdown Voltage | 15.8V |
| Max Forward Surge Current (Ifsm) | 2.5A |
| Max Junction Temperature (Tj) | 175°C |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 1.7W |
| Max Repetitive Reverse Voltage (Vrrm) | 250V |
| Max Reverse Leakage Current | 5µA |
| Max Surge Current | 147A |
| Min Breakdown Voltage | 14.3V |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 12.8V |
| Peak Pulse Current | 28A |
| Peak Pulse Power | 600W |
| Polarity | Bidirectional |
| Power Dissipation | 200mW |
| Power Rating | 600W |
| REACH SVHC | No |
| Reverse Recovery Time | 50ns |
| Reverse Standoff Voltage | 12.8V |
| RoHS | Compliant |
| Test Current | 1mA |
| Voltage Rating (DC) | 13V |
| Width | 3.6mm |
