| Approvals | CSA |
| China RoHS | Non-Compliant |
| Color | Black |

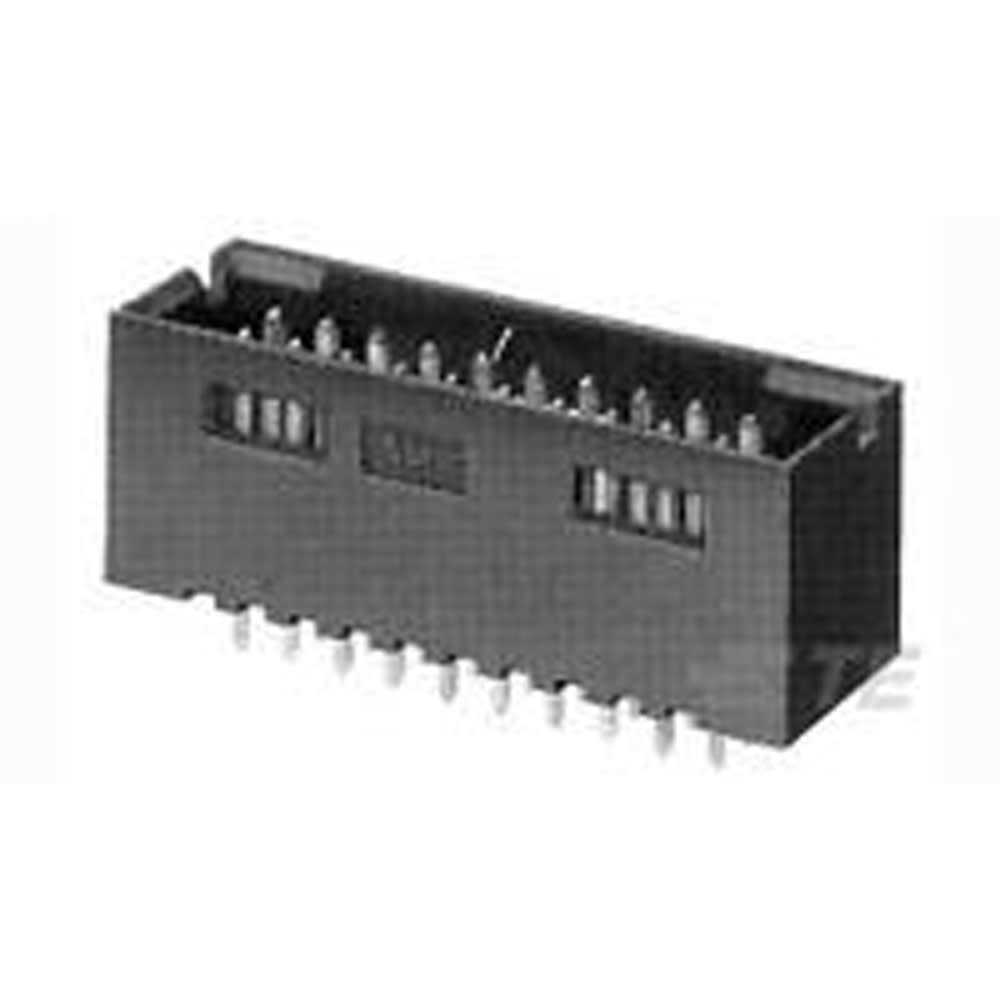

| Connector Type | Header, Pin, Plug |
| Contact Current Rating | 3A |
| Contact Gender | Male |
| Contact Material | Bronze |
| Contact Mating Length | 8.0772mm |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Style | Pin |
| Current Rating | 3A |
| Dielectric Material | Polyethylene |
| Export Control Classification Number (ECCN) Code | EAR99 |
| ELV | Non-Compliant |
| Fastening Type | Detent |
| Flammability Rating | UL94 V-0 |
| High Speed Serial Data Connector | No |
| High Temperature Housing | No |
| Housing Color | Black |
| Housing Material | Thermoplastic |
| Harmonized Tariff Schedule (HTS) Code | 8536.69.40.40 |
| Insulation Resistance | 5GΩ |
| Introduction Date | 1995-07-01 |
| Keyed | No |
| Lead Free | Contains Lead |
| Lead Length | 3.175mm |
| Lifecycle Status | Obsolete |
| Mating Post Length | 8.08mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Contacts | 36 |
| Number of Pins | 36 |
| Number of Ports | 1 |
| Number of Positions | 36 |
| Number of Rows | 2 |
| Orientation | Vertical |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.397mm |
| Pitch | 2.54mm |
| Plating Thickness | 762nm |
| REACH SVHC | No |
| RoHS | Non-Compliant |
| Row Spacing | 2.54mm |
| Shielding | Unshielded |
| Shrouded End Dimension | 3.81mm |
| Terminal Pitch | 2.54mm |
| Termination | Through Hole |
