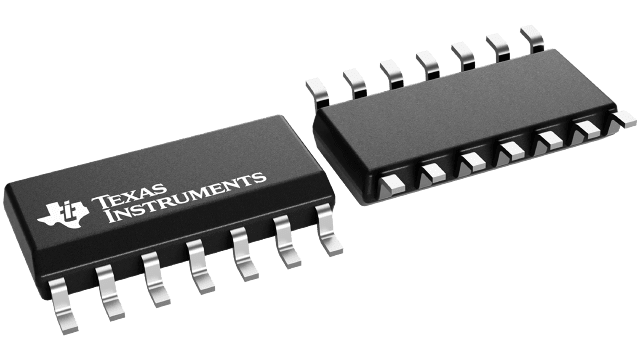

| Case/Package | SOIC |
| Clock Edge Trigger Type | Positive Edge |
| Contact Plating | Gold |
| Frequency | 50MHz |
| Height | 0m |
| High Level Output Current | -5.2mA |
| Lead Free | Lead Free |
| Length | 8.65mm |
| Lifecycle Status | Production |
| Logic Function | AND, D-Type, Flip-Flop |
| Low Level Output Current | 5.2mA |
| Manufacturer Lifecycle Status | ACTIVE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 6V |
| Min Operating Temperature | -55°C |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 2 |
| Number of Bits per Element | 1 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Input Lines | 1 |
| Number of Output Lines | 1 |
| Number of Pins | 14 |
| Output Current | 5.2mA |
| Packaging | Cut Tape |
| Polarity | Non-Inverting |
| Propagation Delay | 175ns |
| Quiescent Current | 4µA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8542390000, 8542390000|8542390000, 8542390000|8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000 |
| Termination | SMD/SMT |
| Thickness | 1.58mm |
| Turn-On Delay Time | 14ns |
| Weight | 129.387224mg |
| Width | 3.91mm |
