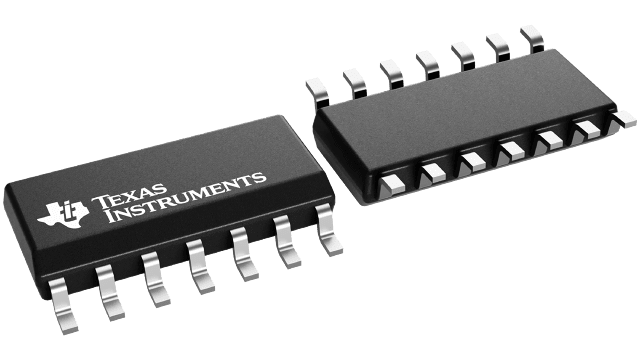

| Case/Package | SOIC |
| Height | 0m |
| High Level Output Current | -24mA |
| Lead Free | Lead Free |
| Length | 8.65mm |
| Lifecycle Status | Obsolete |
| Logic Function | XOR |
| Low Level Output Current | 24mA |
| Manufacturer Lifecycle Status | OBSOLETE |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Gates | 4 |
| Number of Input Lines | 2 |
| Number of Inputs | 2 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Number of Pins | 14 |
| Operating Supply Voltage | 5V |
| Output Type | CMOS |
| Propagation Delay | 10ns |
| Quiescent Current | 4µA |
| Radiation Hardening | No |
| REACH SVHC | No |
| RoHS | Compliant |
| Schmitt Trigger Input | No |
| Thickness | 1.58mm |
| Turn-On Delay Time | 10ns |
| Weight | 129.387224mg |
| Width | 3.91mm |
