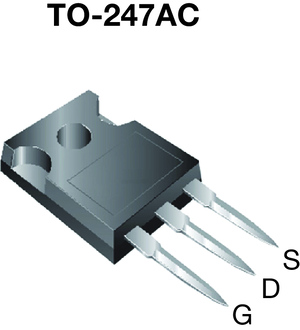

| Case/Package | TO-247-3 |
| Continuous Drain Current (ID) | 70A |
| Current Rating | 70A |
| Drain to Source Breakdown Voltage | 60V |
| Drain to Source Resistance | 9mΩ |
| Drain to Source Voltage (Vdss) | 60V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Fall Time | 190ns |
| Gate to Source Voltage (Vgs) | 20V |
| Height | 20.7mm |
| Input Capacitance | 7.4nF |
| Introduction Date | 1993-01-01 |
| Lead Free | Contains Lead |
| Length | 15.87mm |
| Lifecycle Status | Obsolete |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 300W |
| Min Breakdown Voltage | 60V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Packaging | Bulk |
| Power Dissipation | 300W |
| Radiation Hardening | No |
| Rds On Max | 9mΩ |
| REACH SVHC | Yes |
| Rise Time | 190ns |
| RoHS | Non-Compliant |
| Turn-Off Delay Time | 110ns |
| Turn-On Delay Time | 21ns |
| Voltage Rating (DC) | 60V |
| Weight | 38.000013g |
| Width | 5.31mm |
