| Average Rectified Current | 16A |

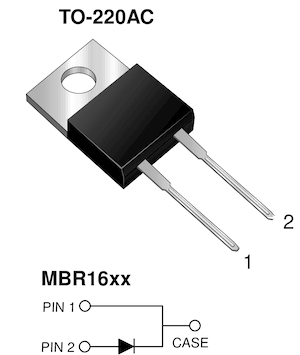

| Case/Package | TO-220-2 |
| China RoHS | Non-Compliant |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Forward Current | 16A |
| Forward Voltage | 630mV |
| Height | 9.02mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.80 |
| Introduction Date | 2001-04-30 |
| Lead Free | Lead Free |
| Length | 10.66mm |
| Lifecycle Status | Production |
| Max Forward Surge Current (Ifsm) | 150A |
| Max Operating Temperature | 150°C |
| Max Output Current | 16A |
| Max Repetitive Reverse Voltage (Vrrm) | 45V |
| Max Reverse Leakage Current | 200µA |
| Max Reverse Voltage (DC) | 45V |
| Max Surge Current | 150A |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Peak Non-Repetitive Surge Current | 150A |
| Peak Reverse Current | 200µA |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 45V |
| RoHS | Compliant |
| Schedule B | 8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080 |
| Width | 4.82mm |
