| Breakdown Voltage | 7.5V |

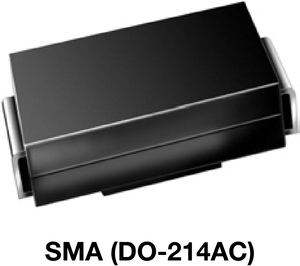

| Case/Package | SMA |
| China RoHS | Non-Compliant |
| Clamping Voltage | 11.3V |
| Composition | Zener |
| Direction | Bidirectional |
| Element Configuration | Single |
| Lead Free | Lead Free |
| Leakage Current | 1µA |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 7.88V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 3.3W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 40A |
| Min Breakdown Voltage | 7.13V |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 6.4V |
| Peak Pulse Current | 3.9A |
| Peak Pulse Power | 300W |
| Polarity | Bidirectional |
| Power Dissipation | 400W |
| Power Line Protection | No |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 7.13V |
| Reverse Standoff Voltage | 6.4V |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Test Current | 1mA |
