| Breakdown Voltage | 39.05V |

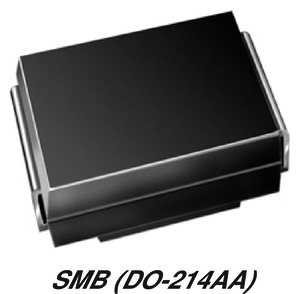

| Case/Package | SMB |
| China RoHS | Non-Compliant |
| Clamping Voltage | 53.9V |
| Composition | Zener |
| Direction | Bidirectional |
| Element Configuration | Single |
| Leakage Current | 1µA |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 41V |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 5W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 100A |
| Min Breakdown Voltage | 37.1V |
| Min Operating Temperature | -65°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 33.3V |
| Packaging | Cut Tape |
| Peak Pulse Current | 11.1A |
| Peak Pulse Power | 600W |
| Peak Reverse Current | 1µA |
| Polarity | Bidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 37.1V |
| Reverse Standoff Voltage | 33.3V |
| RoHS | Compliant |
| Test Current | 1mA |
