| Breakdown Voltage | 25.65V |

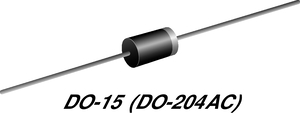

| Case/Package | DO-15 |
| China RoHS | Non-Compliant |
| Clamping Voltage | 35.5V |
| Composition | Zener |
| Direction | Unidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2002-08-01 |
| Leakage Current | 1µA |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 26.9V |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 3W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 14.1A |
| Min Breakdown Voltage | 24.4V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 22V |
| Peak Pulse Current | 14.1A |
| Peak Pulse Power | 500W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 24.4V |
| Reverse Standoff Voltage | 22V |
| RoHS | Compliant |
| Test Current | 1mA |
