| Breakdown Voltage | 28.1V |

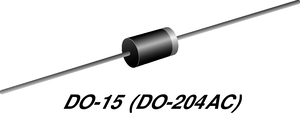

| Case/Package | DO-15 |
| China RoHS | Non-Compliant |
| Clamping Voltage | 38.9V |
| Direction | Bidirectional |
| Element Configuration | Single |
| Leakage Current | 1µA |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 29.5V |
| Max Operating Temperature | 175°C |
| Max Power Dissipation | 3W |
| Max Reverse Leakage Current | 1µA |
| Max Surge Current | 12.9A |
| Min Breakdown Voltage | 26.7V |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 24V |
| Peak Pulse Current | 12.9A |
| Peak Pulse Power | 500W |
| Polarity | Bidirectional |
| REACH SVHC | Yes |
| Reverse Breakdown Voltage | 26.7V |
| Reverse Standoff Voltage | 24V |
| RoHS | Compliant |
| Test Current | 1mA |
