| Average Rectified Current | 30A |

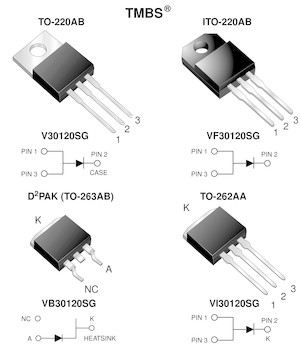

| Case/Package | TO-220AB |
| China RoHS | Non-Compliant |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Common Anode |
| Forward Current | 30A |
| Forward Voltage | 900mV |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.80 |
| Introduction Date | 2007-09-05 |
| Lifecycle Status | Production |
| Max Forward Surge Current (Ifsm) | 220A |
| Max Operating Temperature | 150°C |
| Max Output Current | 30A |
| Max Repetitive Reverse Voltage (Vrrm) | 120V |
| Max Reverse Leakage Current | 500µA |
| Max Reverse Voltage (DC) | 120V |
| Max Surge Current | 220A |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Peak Non-Repetitive Surge Current | 220A |
| Peak Reverse Current | 500µA |
| REACH SVHC | No |
| Reverse Standoff Voltage | 120V |
| RoHS | Compliant |
