| Average Rectified Current | 10A |

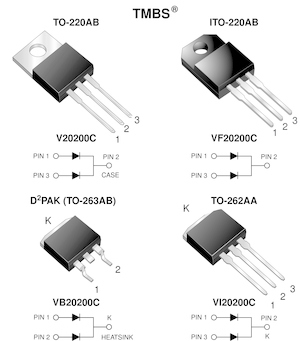

| Case/Package | TO-220-3 |
| China RoHS | Non-Compliant |
| Contact Plating | Tin |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Common Cathode |
| Forward Current | 20A |
| Forward Voltage | 760mV |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.80 |
| Introduction Date | 2008-06-02 |
| Lead Free | Lead Free |
| Lifecycle Status | Production |
| Max Forward Surge Current (Ifsm) | 120A |
| Max Operating Temperature | 150°C |
| Max Output Current | 10A |
| Max Repetitive Reverse Voltage (Vrrm) | 200V |
| Max Reverse Leakage Current | 150µA |
| Max Reverse Voltage (DC) | 200V |
| Max Surge Current | 120A |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Elements | 2 |
| Number of Pins | 3 |
| Number of Terminals | 3 |
| Peak Non-Repetitive Surge Current | 120A |
| Peak Reverse Current | 150µA |
| Radiation Hardening | No |
| REACH SVHC | No |
| Reverse Standoff Voltage | 200V |
| RoHS | Compliant |
