06031A220JAT2A - Kyocera AVX
AVX 06031A220JAT2A SMD Multilayer Ceramic Capacitor, 22 pF, 5%, C0G / NP0, 100 V, 0603 [1608 Metric]
Technical Details
| Capacitance | 22pF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Case/Package | 0603 |
| Construction | Flat |
| Depth | 0.81mm |
| Dielectric | C0G |
| Dielectric Material | Ceramic |
| Height | 0.63mm |
| Insulation Resistance | 100GR |
| Length | 1.6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Number of Pins | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Temperature Coefficient | 30ppm/°C |
| Termination | SMD/SMT |
| Thickness | 0.035inch |
| Tolerance | 5% |
| Voltage | 100V |
| Voltage Rating | 100V |
| Voltage Rating (DC) | 100V |
| Width | 0.032inch |
Compliance
RoHS : Compliant
Radiation Hardening : No

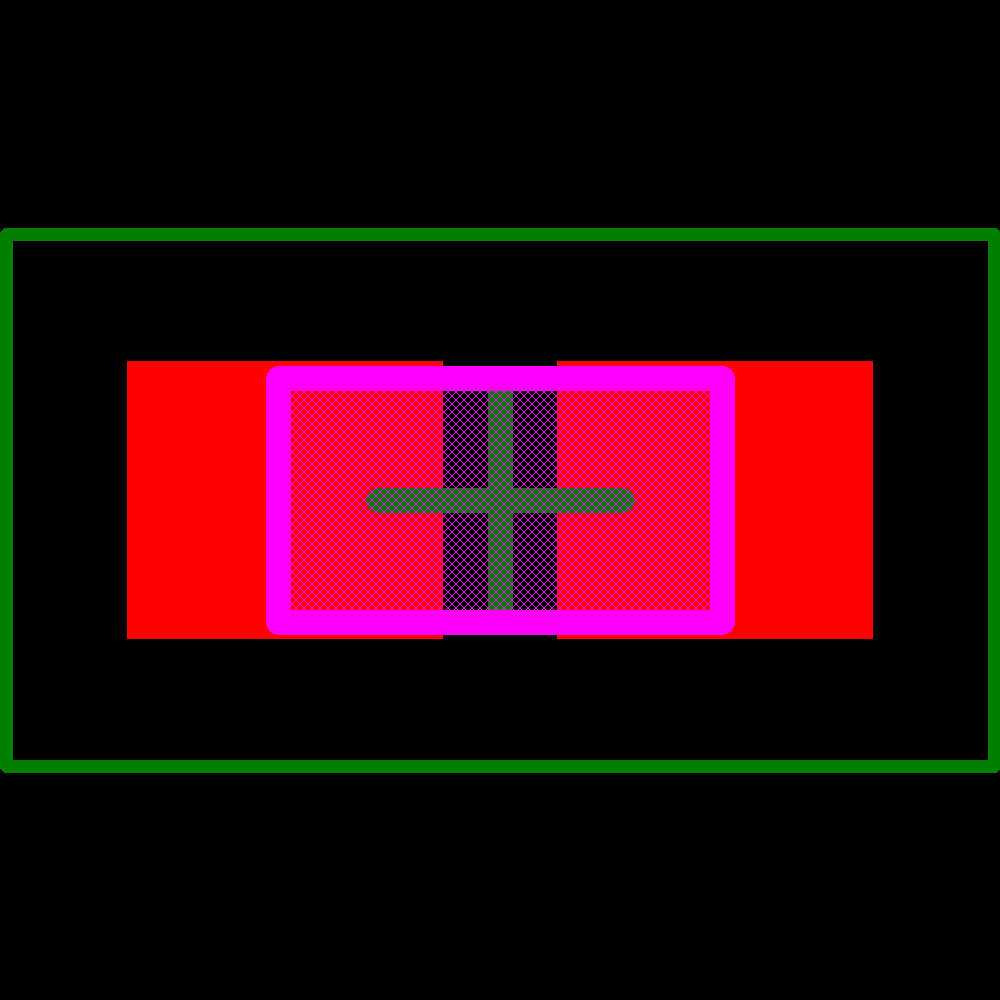

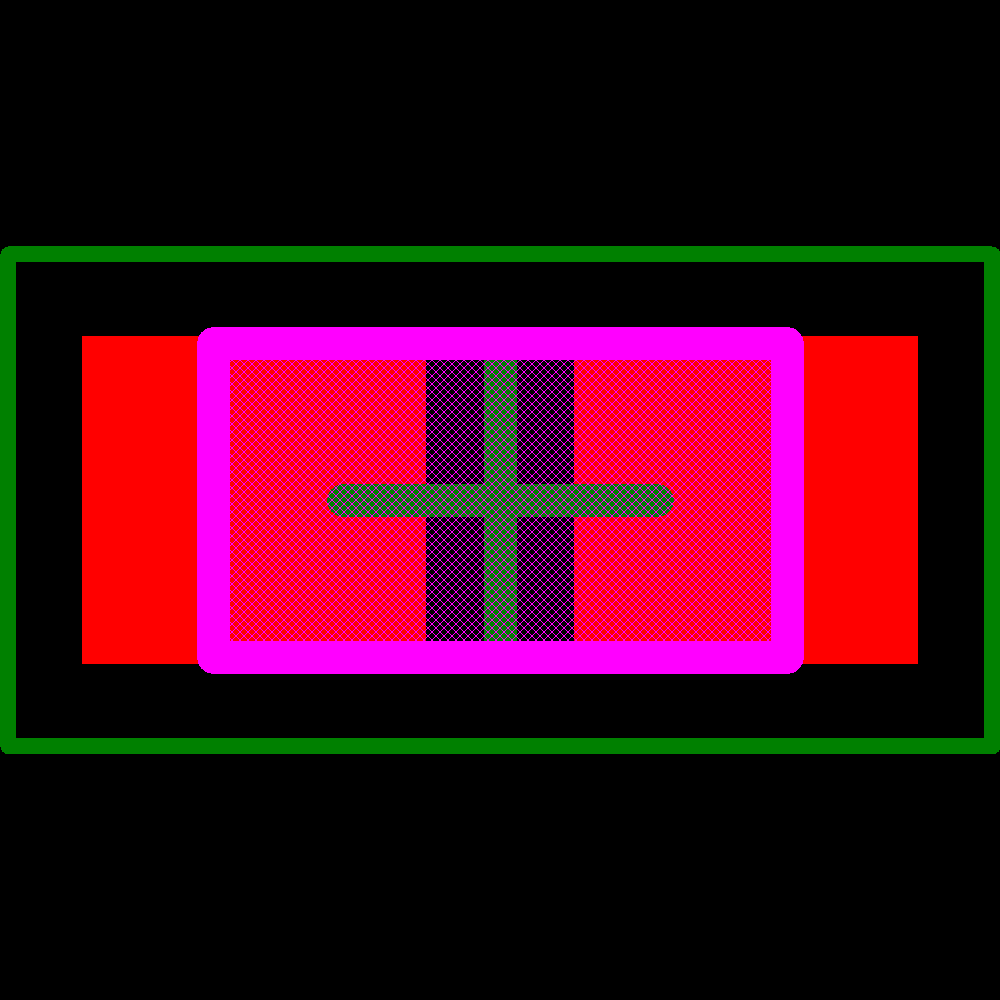

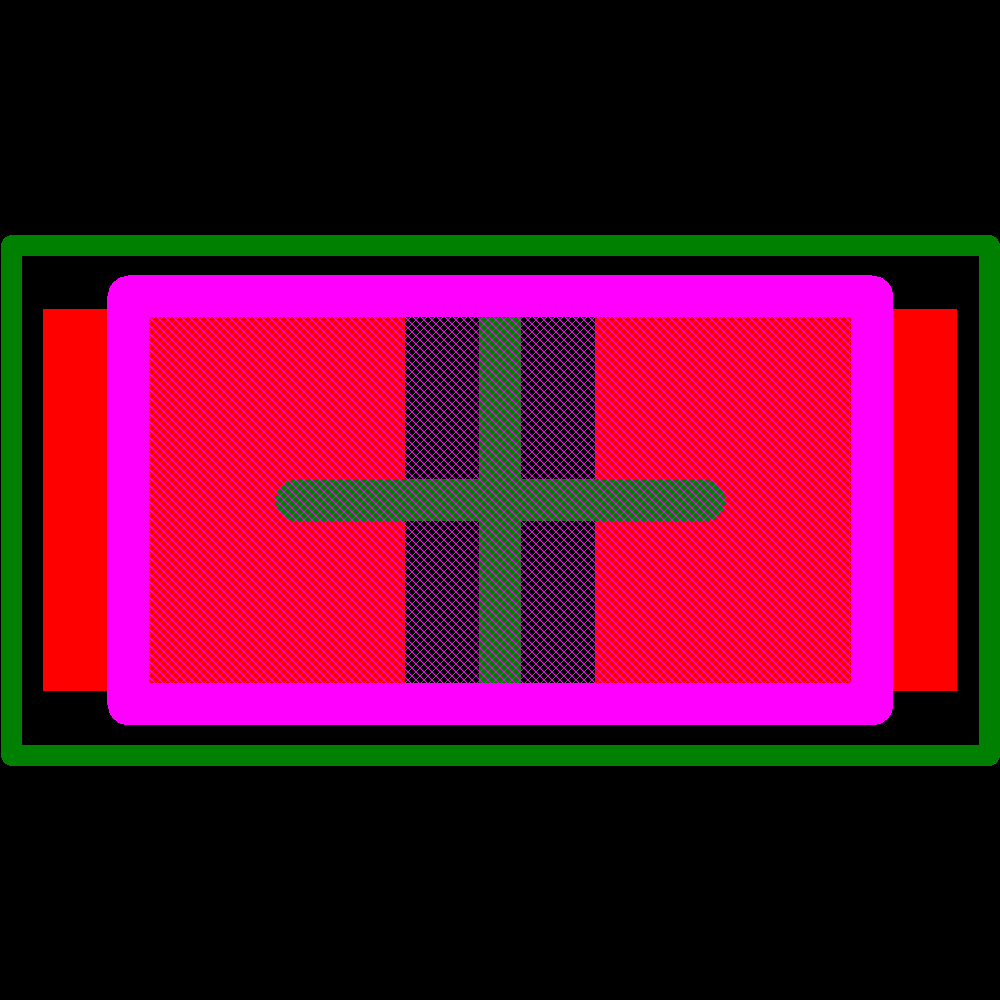

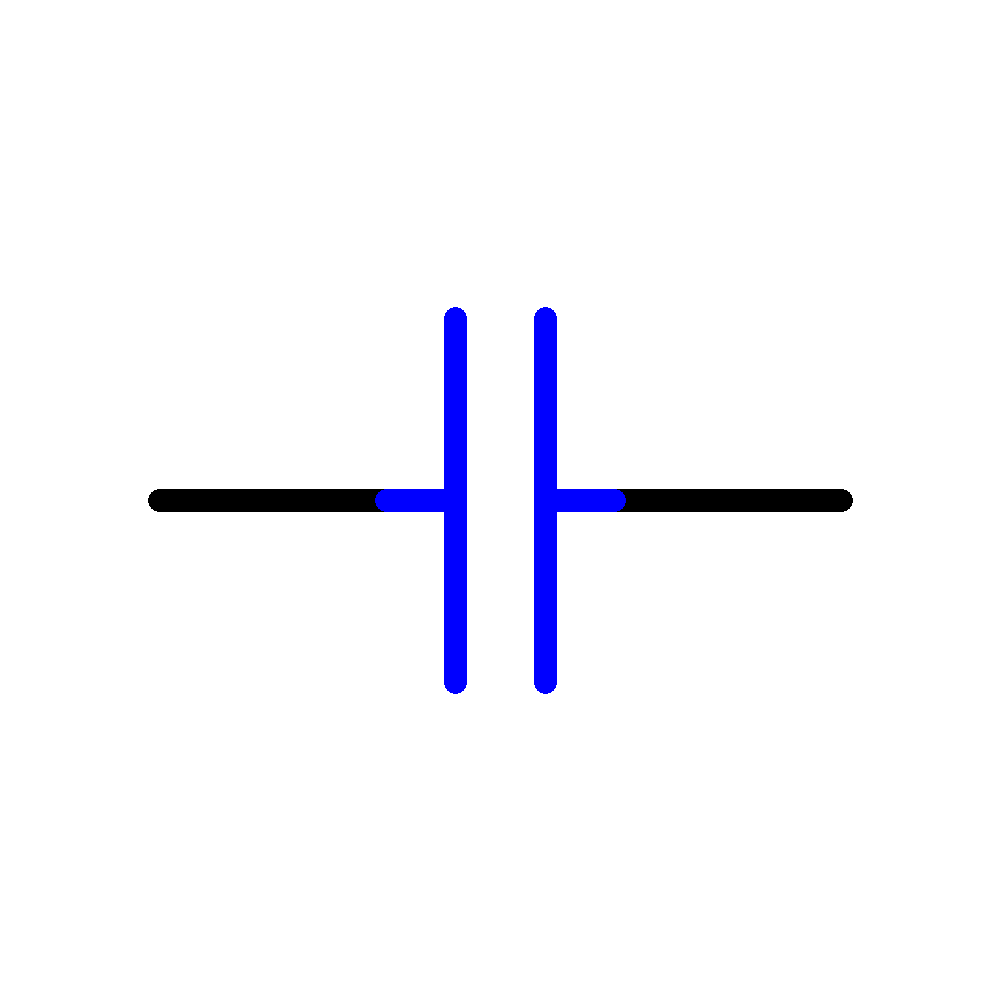

Images
Future Electronics
Future Electronics
Rs
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Murata | Not Recommended for New Design | ||
| Murata | Obsolete | ||
| Johanson | Volume Production | ||
| KEMET | Volume Production | ||
| KEMET | Volume Production | ||
| KEMET | Volume Production | ||
| KEMET | Volume Production | ||
| Kyocera AVX | Volume Production | ||
| Kyocera AVX | Volume Production | ||
| Kyocera AVX | Volume Production |
