Passive Components > Capacitors > Ceramic Capacitors

08055A180JAT2A - Kyocera AVX

Multilayer Ceramic Capacitors MLCC - SMD/SMT 50V 18pF C0G 0805 5% Tol

Technical Details

Capacitance	18pF
Case Code (Imperial)	0805
Case Code (Metric)	2012
Case/Package	0805
Depth	1.25mm
Dielectric	C0G
Dielectric Material	Ceramic
Dissipation Factor	2.5%
Height	0.93mm
Lead Free	Lead Free
Length	2.01mm
Material	Ceramic
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Mount	Surface Mount, PCB
Package Quantity	4000
Packaging	Tape and Reel
Reach SVHC Compliant	No
RoHS Compliant	Yes
Temperature Coefficient	30ppm/°C
Termination	SMD/SMT
Tolerance	5%
Voltage	50V
Voltage Rating	50V
Voltage Rating (DC)	50V
Width	1.25mm

Compliance

RoHS : Compliant

Images

Kyocera AVX 08055A180JAT2A | Future Electronics

Future Electronics

Kyocera AVX 08055A180JAT2A | Distrelec

Distrelec

Kyocera AVX 08055A180JAT2A | Future Electronics

Future Electronics

Datasheets

Avnet

08055A180JAT2A datasheet (pdf, 118.9 KB)

Element14

08055A180JAT2A datasheet (pdf, 101.4 KB)

Lifecycle Status Indicator

Volume Production

Loading indicators

Symbol

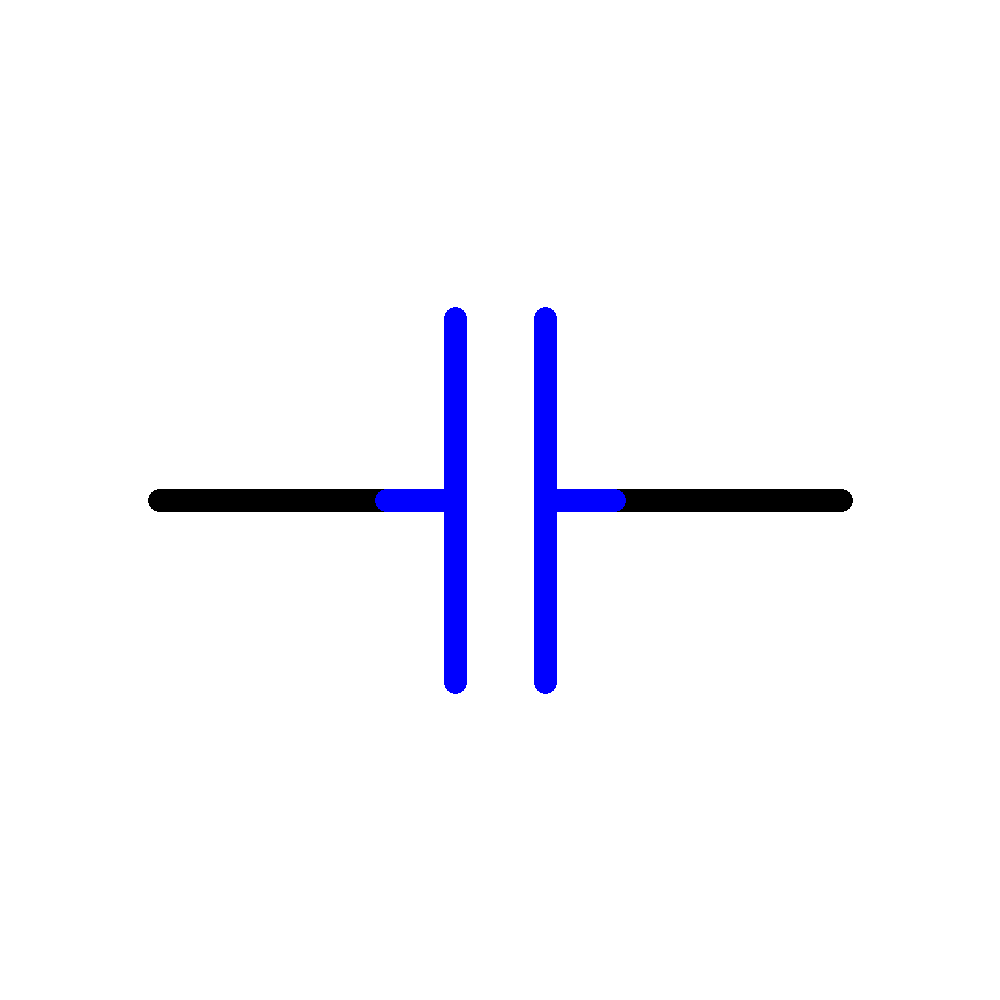

08055A180JAT2A Symbol - Kyocera AVX

Footprint

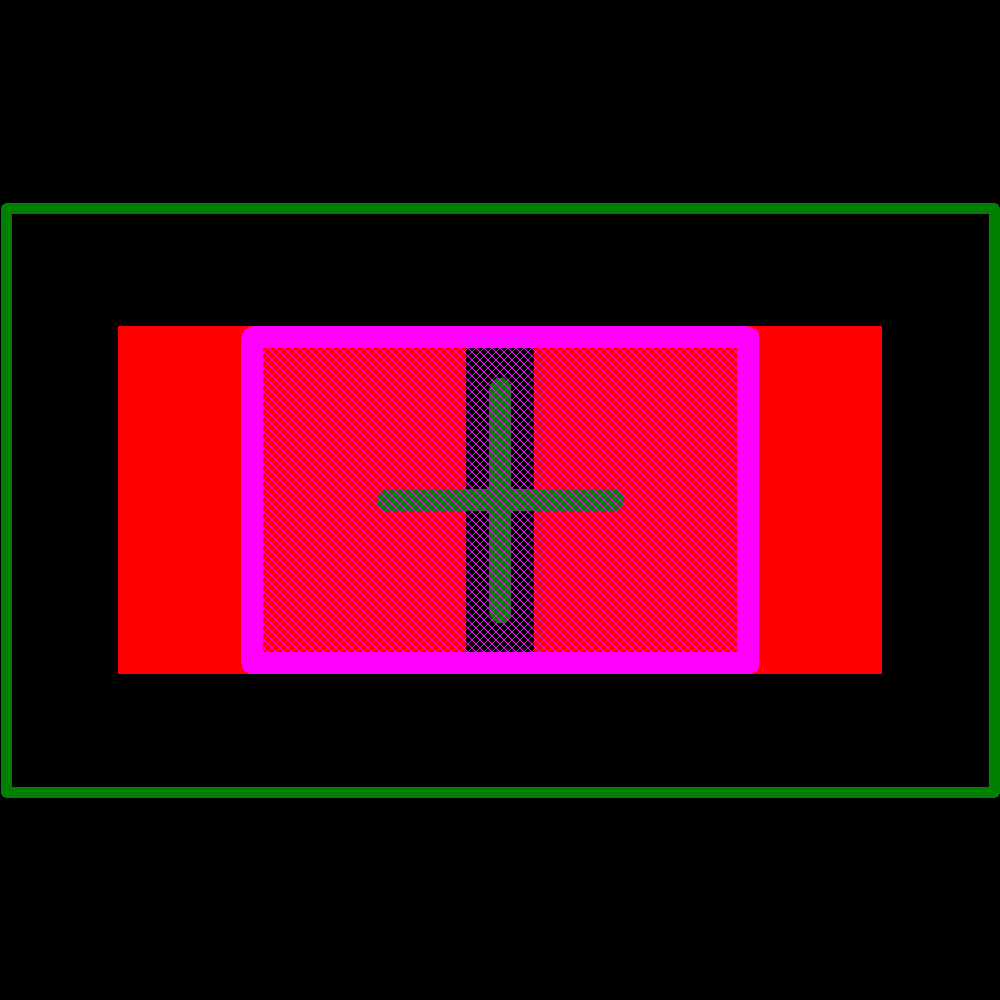

08055A180JAT2A Footprint - Kyocera AVX

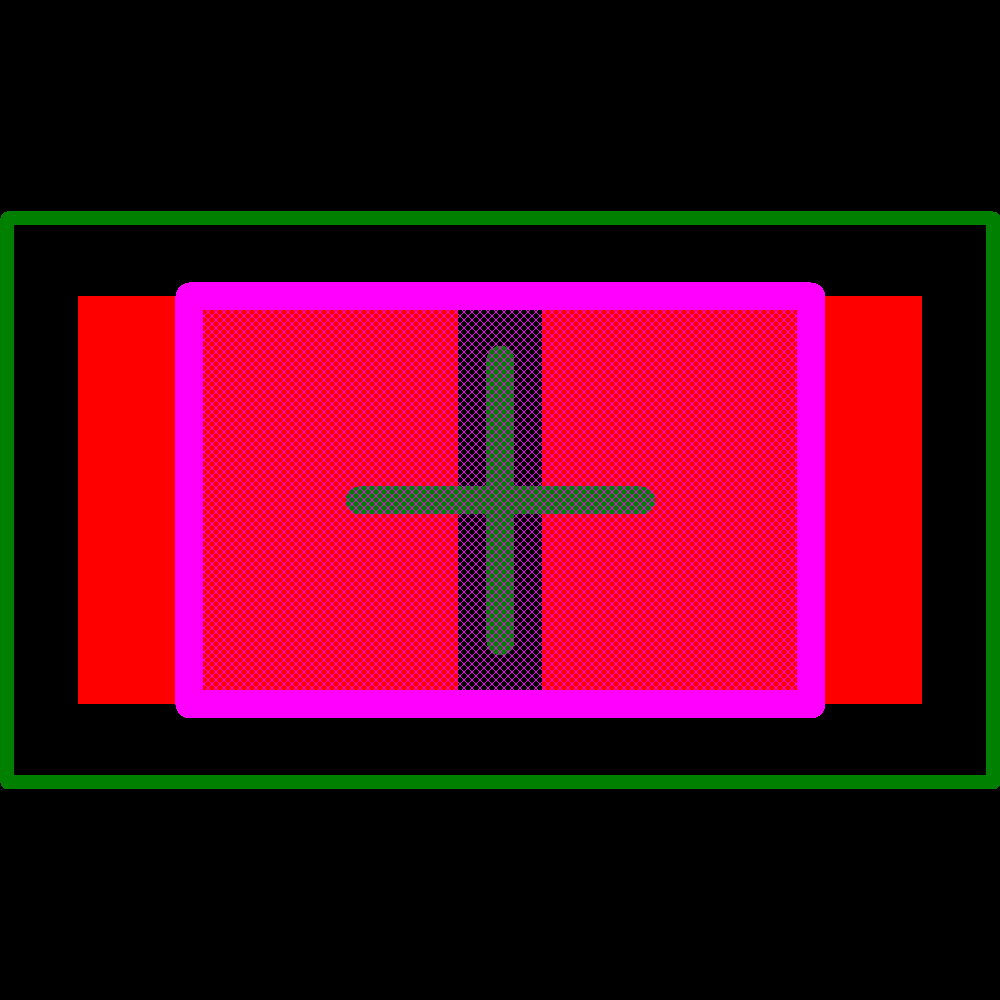

08055A180JAT2A Footprint - Kyocera AVX

08055A180JAT2A Footprint - Kyocera AVX

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
KEMET	C0805C180J1GACTU	Volume Production
KEMET	C0805C180J2GACTU	Volume Production
KEMET	C0805C180G5GACTU	Volume Production
KEMET	C0805C180G1GACTU	Not Recommended for New Design
KEMET	C0805C180G2GACTU	Volume Production
Kyocera AVX	LD051A180JAB2A	Volume Production
Kyocera AVX	LD051A180JAB4A	Volume Production
Kyocera AVX	LD055A180JAB2A	Volume Production
Kyocera AVX	08055A180JAJ2A	Volume Production
Kyocera AVX	08055J180GBTTR	Volume Production

See more alternatives See less alternatives
