1SMB13AT3G - ON Semiconductor

TVS DIODE 13V 21.5V SMB

Technical Details

Breakdown Voltage 15.15V
Capacitance 1.16nF
Case/Package SMB
Clamping Voltage 21.5V
Clamping Voltage-Max 21.5V
Depth 3.56mm
Diode Type ZENER
Direction Unidirectional
ESD Protection Yes
Halogen Free Halogen Free
Height 0.09inch
Lead Free Lead Free
Leakage Current 5uA
Length 4.32mm
Max Breakdown Voltage 15.9V
Min Breakdown Voltage 14.4V
Max Operating Temperature 150°C
Min Operating Temperature -65°C
Max Reverse Leakage Current 5uA
Max Surge Current 27.9A
Number of Channels 1
Number of Elements 1
Number of Pins 2
Number of Unidirectional Channels 1
Operating Supply Voltage 13V
Package Quantity 1
Packaging Tape and Reel
Peak Pulse Current 27.9A
Peak Pulse Power 600W
Polarity Unidirectional
Power Dissipation 600W
Power Line Protection No
Radiation Hardening No
Reverse Breakdown Voltage 14.4V
Reverse Standoff Voltage 13V
RoHS Compliant Yes
Termination SMD/SMT
Test Current 1mA
Voltage Rating (DC) 13V
Width 0.156inch
Working Voltage 13V

Compliance

   RoHS : Compliant
   Radiation Hardening : No

Images

ON Semiconductor 1SMB13AT3G | Rochester Electronics

Rochester Electronics

ON Semiconductor 1SMB13AT3G | Newark

Newark

ON Semiconductor 1SMB13AT3G | Digikey

Digikey

Lifecycle Status Indicator

   Volume Production
 Loading indicators

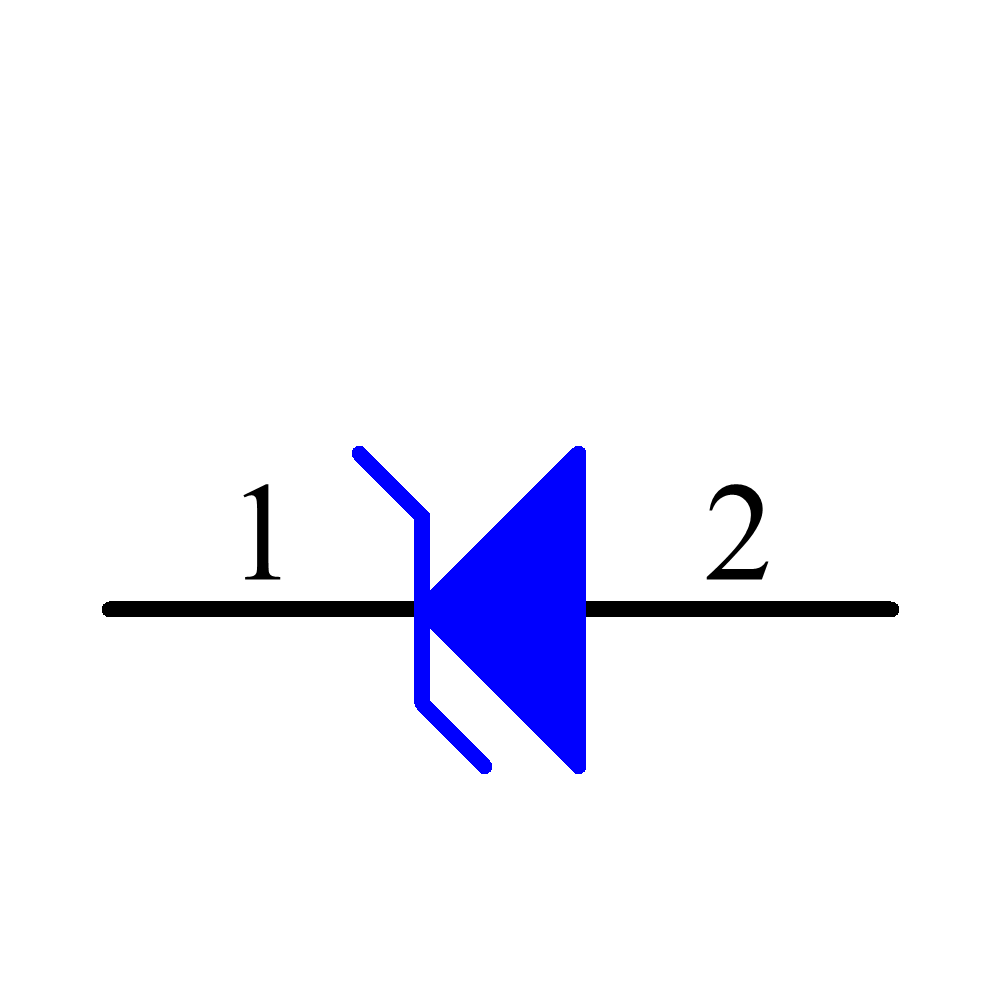

Symbol

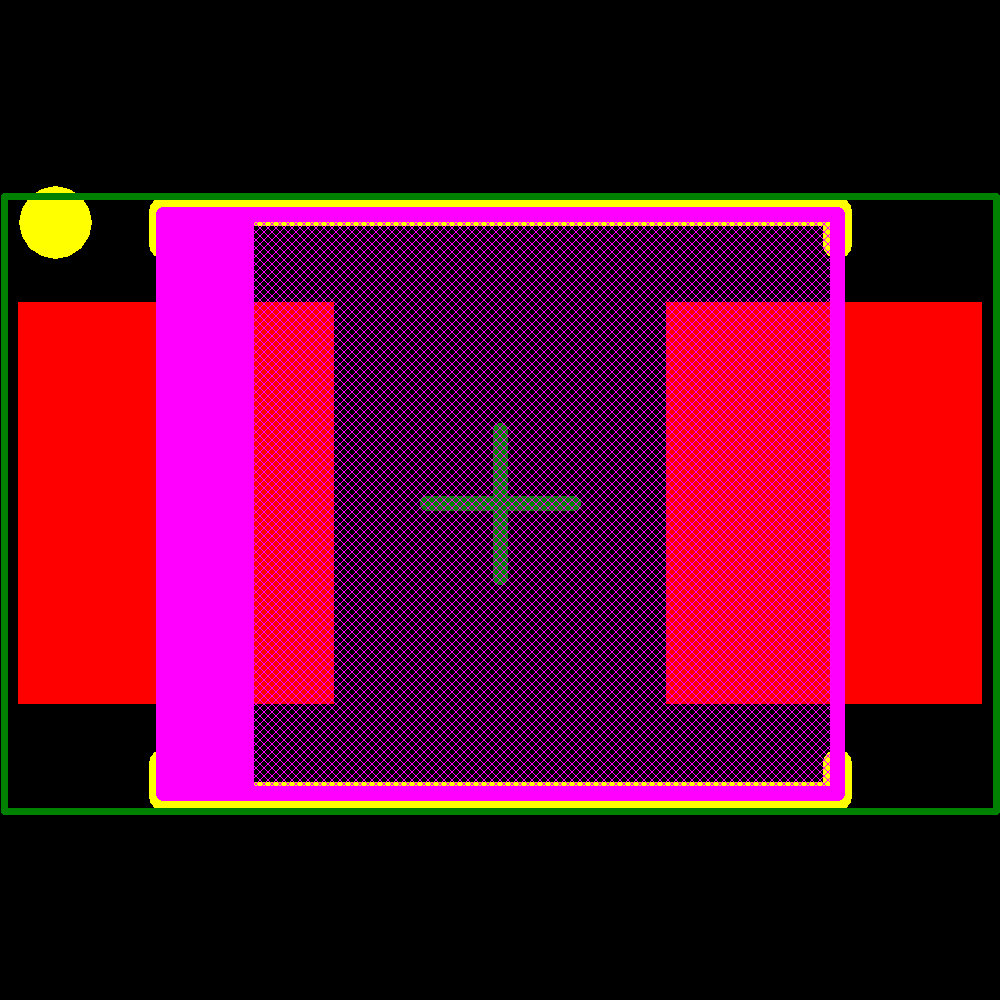

Footprint
