Passive Components  >  Crystals and Oscillators  >  Crystals

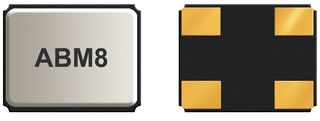

Abracon - ABM8G-25.000MHZ-B4Y-T

ABM8G-25.000MHZ-B4Y-T - Abracon

Crystal 25MHz ±30ppm (Tol) ±30ppm (Stability) 10pF FUND 60Ohm 4-Pin Ultra Mini-CSMD T/R

 Datasheets

Technical Details

Case/Package SMD/SMT
China RoHS Non-Compliant
Country of Origin Mainland China
Depth 2.5mm
ESR (Equivalent Series Resistance) 60Ω
Frequency 25MHz
Frequency Stability 30ppm
Frequency Tolerance 0.003%
Height 1mm
Harmonized Tariff Schedule (HTS) Code 8541.60.00.60
Introduction Date 2012-12-14
Lead Free Lead Free
Length 3.2mm
Lifecycle Status Production
Load Capacitance 10pF
Max Operating Temperature 70°C
Min Operating Temperature -20°C
Mount Surface Mount
Number of Pins 4
REACH SVHC Yes
RoHS Compliant
Schedule B 8541600060, 8541600060|8541600060|8541600060|8541600060|8541600060, 8541600080
Series Resistance 60Ω
Termination SMD/SMT
Tolerance 0.003%
Width 2.5mm

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Yes

Images

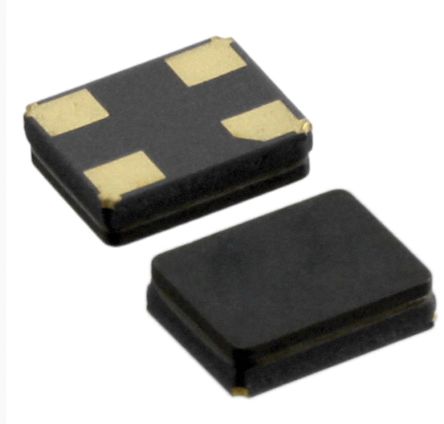

Abracon ABM8G-25.000MHZ-B4Y-T | RS

RS

Datasheets

 RS
 RS
 RS

Lifecycle Status Indicator

   Production

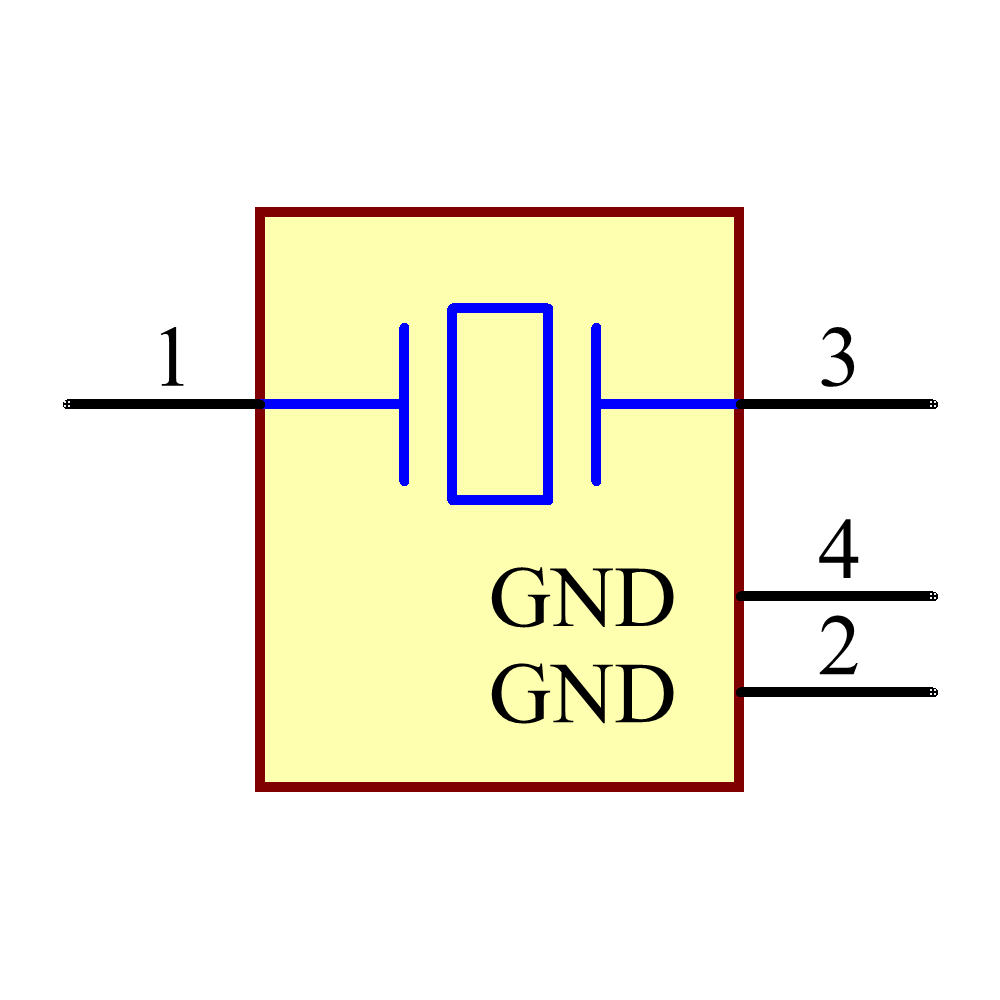

Symbol

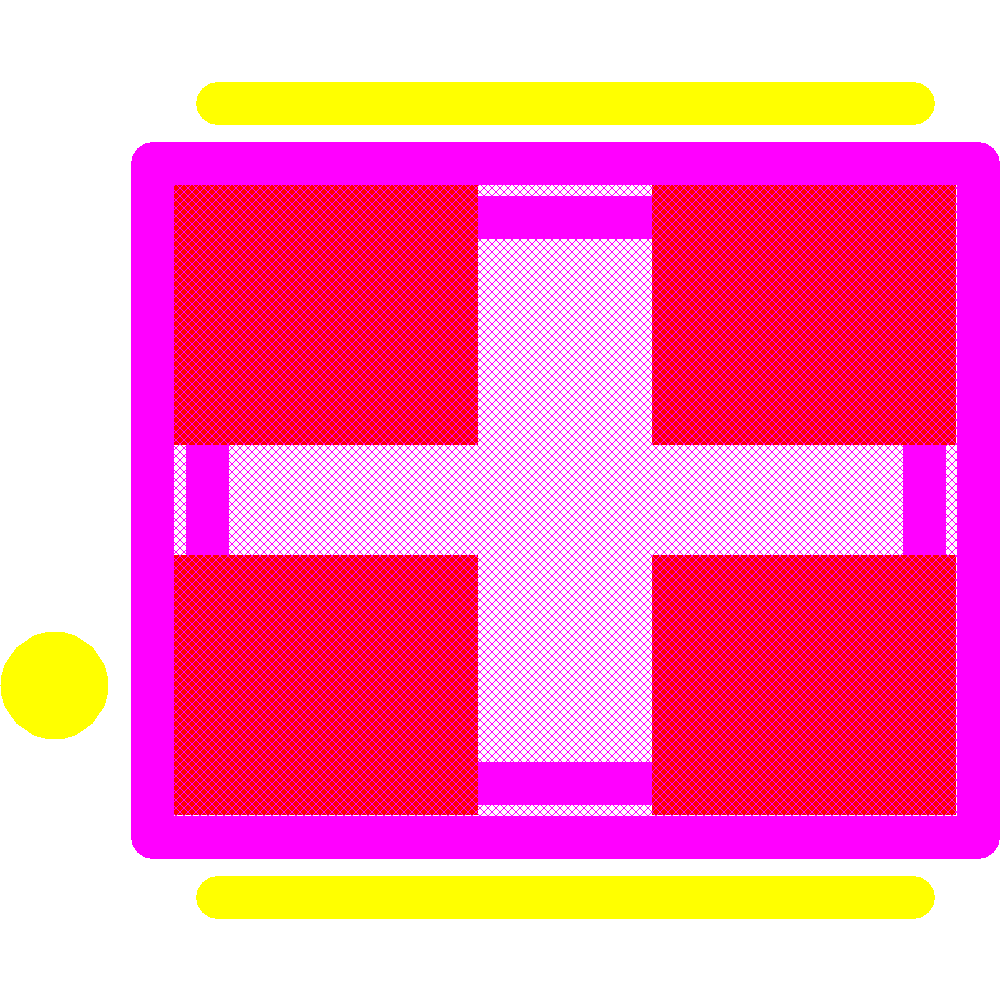

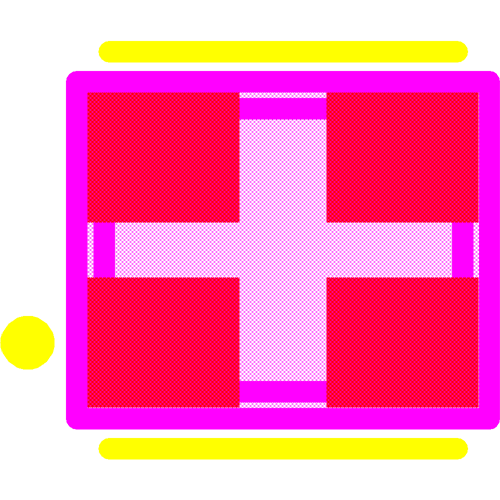

Footprint

Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
RS
1712870
DE: 2360
 $ 0.7224 0.7224 0.7224 0.7224 0.7224
 Historical Pricing  Historical Stock Levels
Quantity
Location
RS
1712870P
DE: 2360
 $ 0.7224 0.7224 0.7224 0.7224 0.7224
 Historical Pricing  Historical Stock Levels
Quantity
Location
RS
1712276
DE: 2360
 $ 0.4894 0.4894
 Historical Pricing  Historical Stock Levels
Quantity
Location
Master Electronics
ABM8G-25.000MHZ-B4Y-T
US: 42998
 $ 0.3192 0.2985
 Historical Pricing  Historical Stock Levels
Quantity
Location
Chip One Stop
ABM8G-25.000MHZ-B4Y-T
JP: 905
 $ 88.60 80.60 62.30 59.10 59.10
 Historical Pricing  Historical Stock Levels
Quantity
Location
Onlinecomponents.com
ABM8G-25.000MHZ-B4Y-T
US: 42998
 $ 0.3192 0.2985
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet
60R3973
US: 827
 $ 0.889 0.769 0.734 0.709 0.632 0.632
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet
ABM8G-25.000MHZ-B4Y-T
US: 0
 $ 0.1389 0.1389
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
ABM8G-25.000MHZ-B4Y-T
US: 70000
 $ 0.361 0.30
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
ABM8G-25.000MHZ-B4Y-T
US: 40000
 $ 0.45 0.45 0.45 0.45 0.41 0.263
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
ABM8G-25.000MHZ-B4Y-T
US: 7000
 $ 0.3755 0.3529
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
ABM8G-25.000MHZ-B4Y-T
US: 905
 $ 0.4377 0.4377 0.4377
 Historical Pricing  Historical Stock Levels
Quantity
Location
Verical
ABM8G-25.000MHZ-B4Y-T
US: 17
 $ 0.1999 0.1999 0.1999 0.1999
 Historical Pricing  Historical Stock Levels
Quantity
Location
Arrow Electronics
ABM8G-25.000MHZ-B4Y-T
US: 70000
 $ 0.361 0.30
 Historical Pricing  Historical Stock Levels
Quantity
Location
Arrow Electronics
ABM8G-25.000MHZ-B4Y-T
US: 17
 $ 0.2033 0.1999 0.1999 0.1999 0.1999 0.1999
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
535-10297-1-ND
DE: 23827
 $ 0.5917 0.5178 0.4258 0.4082 0.4082 0.4082
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
535-10297-6-ND
DE: 23827
 $ 0.5917 0.5178 0.4258 0.4082 0.4082 0.4082
 Historical Pricing  Historical Stock Levels
Quantity
Location
DigiKey
535-10297-2-ND
DE: 23800
 $ 0.3913 0.3532
 Historical Pricing  Historical Stock Levels
Quantity
Location
Future Electronics
5026124
CA: 26000
 $ 0.142 0.138
 Historical Pricing  Historical Stock Levels
Quantity
Location
Farnell
2467849RL
DE: 3320
 $ 0.7014 0.5745 0.5745
 Historical Pricing  Historical Stock Levels
Quantity
Location
Farnell
2467849
DE: 3320
 $ 0.8703 0.7396 0.7014 0.7014 0.5745 0.5745
 Historical Pricing  Historical Stock Levels
Quantity
Location
Farnell
3820018
DE: 1000
 $ 0.4598 0.4327
 Historical Pricing  Historical Stock Levels
Quantity
Location
Farnell
1788522
DE: 827
 $ 0.9418 0.7988 0.7569 0.7273 0.6361 0.6361
 Historical Pricing  Historical Stock Levels
Quantity
Location
TTI
ABM8G-25.000MHZ-B4Y-T
US: 49000
 $ 0.184 0.173
 Historical Pricing  Historical Stock Levels
Quantity
Location
Mouser
815-ABM8G-25-B4Y-T
US: 4637
 $ 0.56 0.491 0.404 0.404 0.37 0.336
 Historical Pricing  Historical Stock Levels
Quantity
Location
Avnet Abacus
ABM8G-25.000MHZ-B4Y-T
EU: 23000
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Chip One Stop Global
ABM8G-25.000MHZ-B4Y-T
JP: 40000
 $ 0.523 0.517
 Historical Pricing  Historical Stock Levels
Quantity
Location
Braemac Americas - Symmetry Electronics
ABM8G-25.000MHZ-B4Y-T
US: 0
 $ 0.41 0.41 0.41 0.41 0.41 0.41
 Historical Pricing  Historical Stock Levels
Quantity
Location
TTI Europe
ABM8G-25.000MHZ-B4Y-T
DE: 7000
 $ 0.3328 0.3094
 Historical Pricing  Historical Stock Levels
Quantity
Location
Anglia
ABM8G25MB4YT
GB: 0
 $ 0.3824 0.3824 0.3824 0.3824 0.3144 0.3008
 Historical Pricing  Historical Stock Levels
Quantity
Location
Newark
ABM8G-25.000MHZ-B4Y-T
US: 3320
 $ 1.35 1.28 1.07 0.977 0.752 0.752
 Historical Pricing  Historical Stock Levels
Quantity
Location
element14 APAC
2467849
SG: 3320
 $ 0.8575 0.7217 0.6837 0.6837 0.5737 0.5737
 Historical Pricing  Historical Stock Levels
Quantity
Location
element14 APAC
2467849RL
SG: 3320
 $ 0.6837 0.5737 0.5737
 Historical Pricing  Historical Stock Levels
Quantity
Location
element14 APAC
3820018
SG: 1000
 $ 0.494 0.494
 Historical Pricing  Historical Stock Levels
Quantity
Location
element14 APAC
1788522
SG: 827
 $ 0.8727 0.7361 0.6974 0.6693 0.5851 0.5851
 Historical Pricing  Historical Stock Levels
Quantity
Location

Non-Authorized Distributors

Distributor SKU Stock USD 1 10 50 100 1000 10000 Buy
Win Source
1042442-ABM8G-25.000MHZ-B4Y-T
CN: 7080
 $ 0.2182 0.1891
 Historical Pricing  Historical Stock Levels
Quantity
Location
GreenTree Electronics
ABM8G-25.000MHZ-B4Y-T
IL: 499
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Maritex
ABM8G-25.000MHZ-B4Y-T
PL: 2660
 $ 0.6554 0.5664 0.5341 0.5125 0.2832 0.2697
 Historical Pricing  Historical Stock Levels
Quantity
Location
UnikeyIC
ABM8G-25.000MHZ-B4Y-T
SG: 6210
 $ 0.3747 0.2983 0.2652 0.2248 0.2061 0.2061
 Historical Pricing  Historical Stock Levels
Quantity
Location
LCSC
C596913
CN: 2962
 $ 0.4149 0.3303 0.2936 0.249 0.2155 0.2155
 Historical Pricing  Historical Stock Levels
Quantity
Location
Fly-Wing Technology
ABM8G-25.000MHZ-B4Y-T
HK: 67595
 $ 0.4664 0.389 0.389 0.3501 0.2956 0.2956
 Historical Pricing  Historical Stock Levels
Quantity
Location
Ansinor
ABM8G-25.000MHZ-B4Y-T
CN: 27728
 $ 0.763 0.763 0.5865 0.3792 0.3792
 Historical Pricing  Historical Stock Levels
Quantity
Location
Bettlink
ABM8G-25.000MHZ-B4Y-T
HK: 25744
 $ 0.5296 0.3923 0.3923 0.3411 0.3188 0.2865
 Historical Pricing  Historical Stock Levels
Quantity
Location
Cytech Systems
ABM8G-25.000MHZ-B4Y-T
CN: 3000
 $ 0.636 0.5978 0.5978 0.566 0.5342 0.5024
 Historical Pricing  Historical Stock Levels
Quantity
Location
Chipsmall Limited
ABM8G-25.000MHZ-B4Y-T
CN: 2660
 $ 0.6418 0.4279 0.4279 0.2567 0.214 0.214
 Historical Pricing  Historical Stock Levels
Quantity
Location
Quest
ABM8G-25.000MHZ-B-4-Y-T
US: 1308
 $ 0.4839 0.4839 0.4033 0.3226 0.2016 0.2016
 Historical Pricing  Historical Stock Levels
Quantity
Location
TME
ABM8G25.000MHZB4-0
PL: 40000
 $ 0.5067 0.3168
 Historical Pricing  Historical Stock Levels
Quantity
Location
ODG (Origin Data Global)
ABM8G-25.000MHZ-B4Y-T
CN: 3000
 $ 0.2628 0.2628
 Historical Pricing  Historical Stock Levels
Quantity
Location
Classic Components
ABM8G-25.000MHZ-B4Y-T
US: 430
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Abacus Technologies
ABM8G-25.000MHZ-B4Y-T
US: 77088
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Abacus Technologies
ABM8G-25.000MHZ-B-4-Y-T
US: 0
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
Sourcengine
ABM8G-25.000MHZ-B-4-Y-T
US: 40000
 $
 Historical Pricing  Historical Stock Levels
Quantity
Location
NAC Semi
ABM8G-25.000MHZ-B4Y-T
US: 23000
 $ 0.7587 0.7587
 Historical Pricing  Historical Stock Levels
Quantity
Location
