Passive Components  >  EMI / RFI Components  >  Common Mode Chokes

TDK - ACM9070-701-2PL-TL01

ACM9070-701-2PL-TL01 - TDK

Common Mode Chokes / Filters 700ohms 100MHz 50volts

 Datasheets

Technical Details

Case/Package 3628
Current Rating 5A
Depth 7.2mm
Height 4.5mm
Impedance 700R
Insulation Resistance 10MR
Lead Free Lead Free
Length 9mm
Max Current Rating 5A
Max DC Current 5A
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Mount Surface Mount
Number of Lines 2
Number of Pins 4
Package Quantity 800
Packaging Tape and Reel
Reach SVHC Compliant No
RoHS Compliant Yes
Series ACM
Shielding Unshielded
Termination SMD/SMT
Test Frequency 100MHz
Voltage Rating (DC) 80V
Width 7mm

Compliance

   RoHS : Compliant

Images

TDK ACM9070-701-2PL-TL01 | Arrow Electronics

Arrow Electronics

TDK ACM9070-701-2PL-TL01 | Newark

Newark

TDK ACM9070-701-2PL-TL01 | Distrelec

Distrelec

TDK ACM9070-701-2PL-TL01 | Farnell

Farnell

TDK ACM9070-701-2PL-TL01 | Rs

Rs

TDK ACM9070-701-2PL-TL01 | Element14

Element14

Datasheets

Avnet
Element14
Digikey

Lifecycle Status Indicator

   Volume Production
 Loading indicators

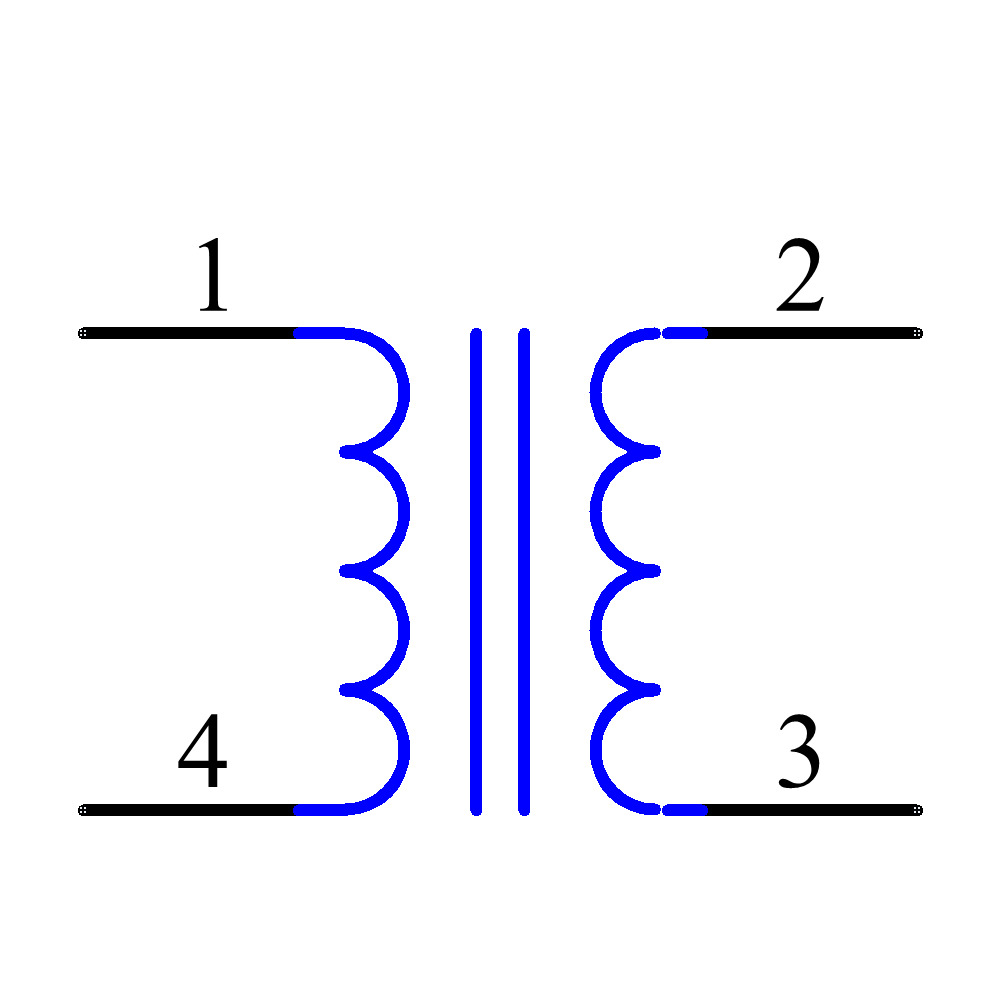

Symbol

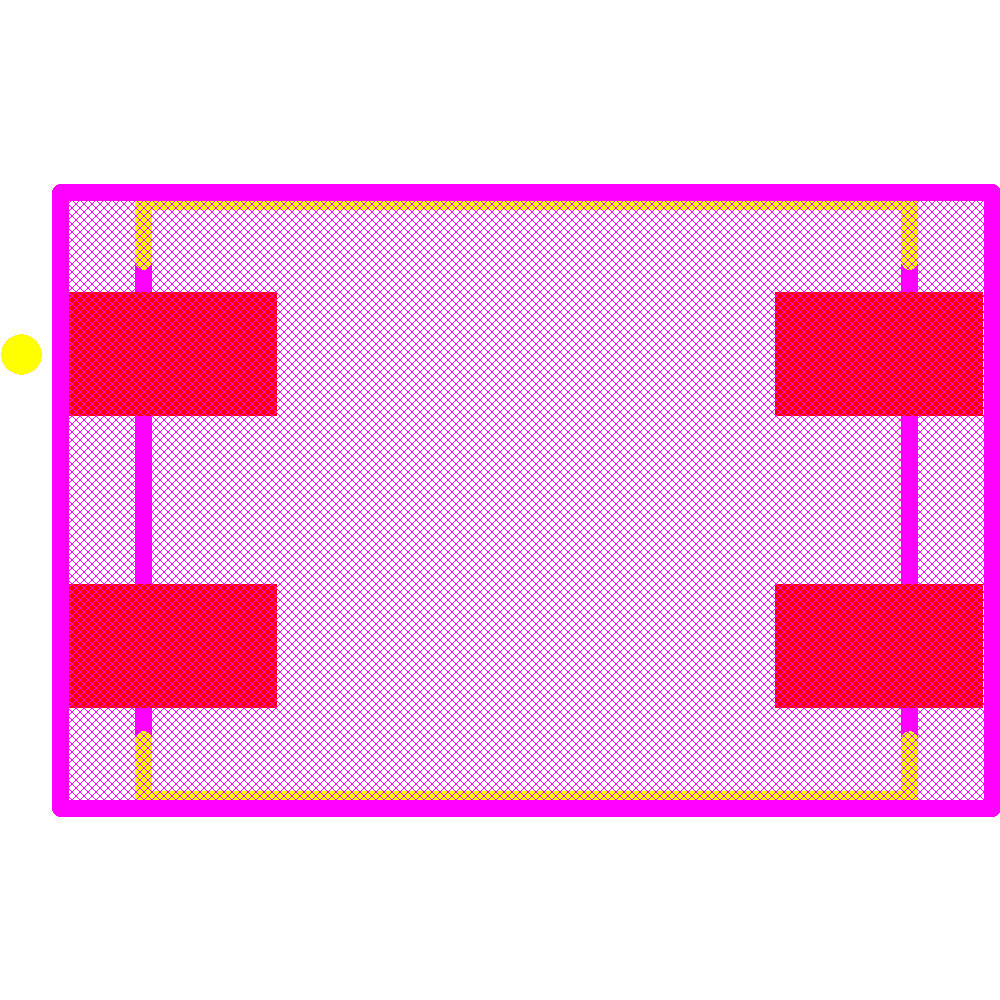

Footprint
