C01620F00310012 - Amphenol

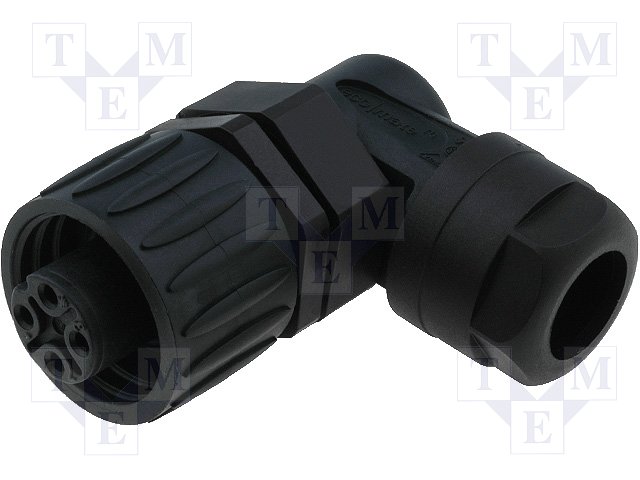

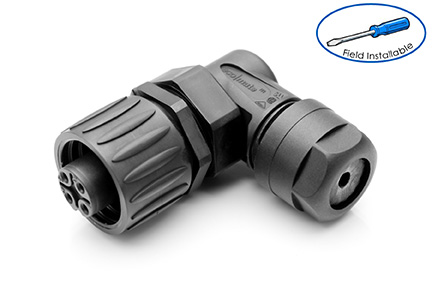

Circular Connector, 3+PE, Circular Industrial, Ecomate C016 Series, Right Angle Receptacle
Technical Details
| Approvals | CSA, UL, VDE |
| Body Material | Nylon, Polyamide |
| Color | Black |
| Contact Gender | Female |
| Contact Material | Silver |
| Contact Plating | Silver |
| Fastening Type | Threaded |
| Gender | Female |
| Housing Material | Polyamide |
| Insulation Material | Plastic |
| Lead Free | Lead Free |
| Length | 60mm |
| Lifecycle Status | Production |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Cable, Free Hanging |
| Number of Contacts | 4 |
| Number of Pins | 3 |
| Orientation | Right Angle |
| Packaging | Box |
| Radiation Hardening | No |
| Ratings | Dust Tight, IP65, IP67, Water Resistant, Waterproof |
| REACH SVHC | No |
| RoHS | Compliant |
| Schedule B | 8536694020|8536694020|8536694020|8536694020|8536694020, 8536694030|8536694030 |
| Termination | Screw |
| Voltage Rating | 400V |
| Wire/Cable Diameter | 12.5mm |
| Wire/Cable Gauge | 14AWG |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : No
