Diodes Zetex - BAS20-7-F

BAS20-7-F - Diodes Zetex

Rectifier Diode Small Signal Switching 200V 0.4A 50ns 3-Pin SOT-23 T/R

 Datasheets

Technical Details

Average Rectified Current 200mA
Capacitance 5pF
Case/Package TO-236-3
Contact Plating Tin, Matte
Forward Current 400mA
Forward Voltage 1.25V
Lead Free Lead Free
Max Operating Temperature 150°C
Min Operating Temperature -65°C
Max Repetitive Reverse Voltage (Vrrm) 200V
Max Reverse Current 100nA
Max Reverse Voltage (DC) 150V
Mount Surface Mount
Number of Pins 3
Output Current 200mA
Packaging Tape and Reel
Peak Non-Repetitive Surge Current 2.5A
Polarity Standard
Power Dissipation 250mW
Power Rating 350mW
Radiation Hardening No
Reverse Recovery Time 50ns
Reverse Recovery Time-Max 50ns
RoHS Compliant Yes

Compliance

   RoHS : Compliant
   Radiation Hardening : No

Images

Diodes Zetex BAS20-7-F | Digikey

Digikey

Diodes Zetex BAS20-7-F | Future Electronics

Future Electronics

Datasheets

Digikey

Lifecycle Status Indicator

   Volume Production
 Loading indicators
Symbol

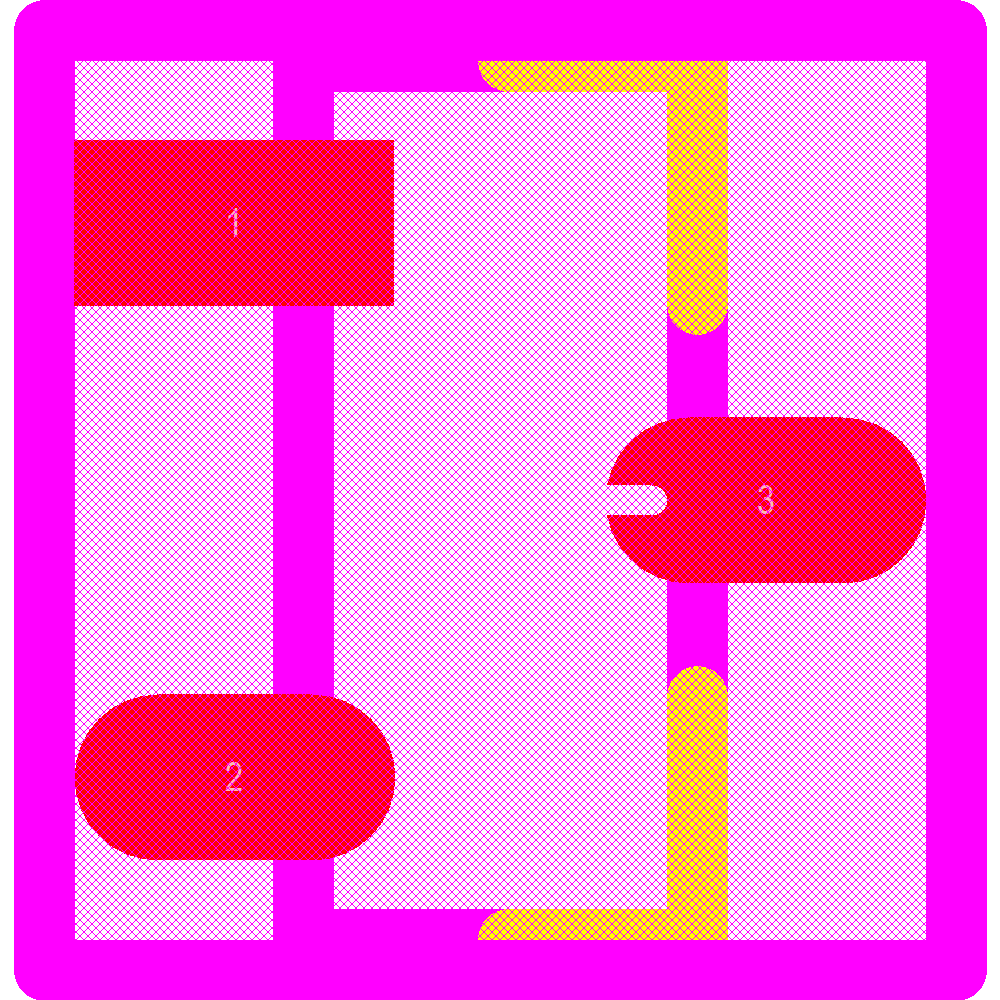

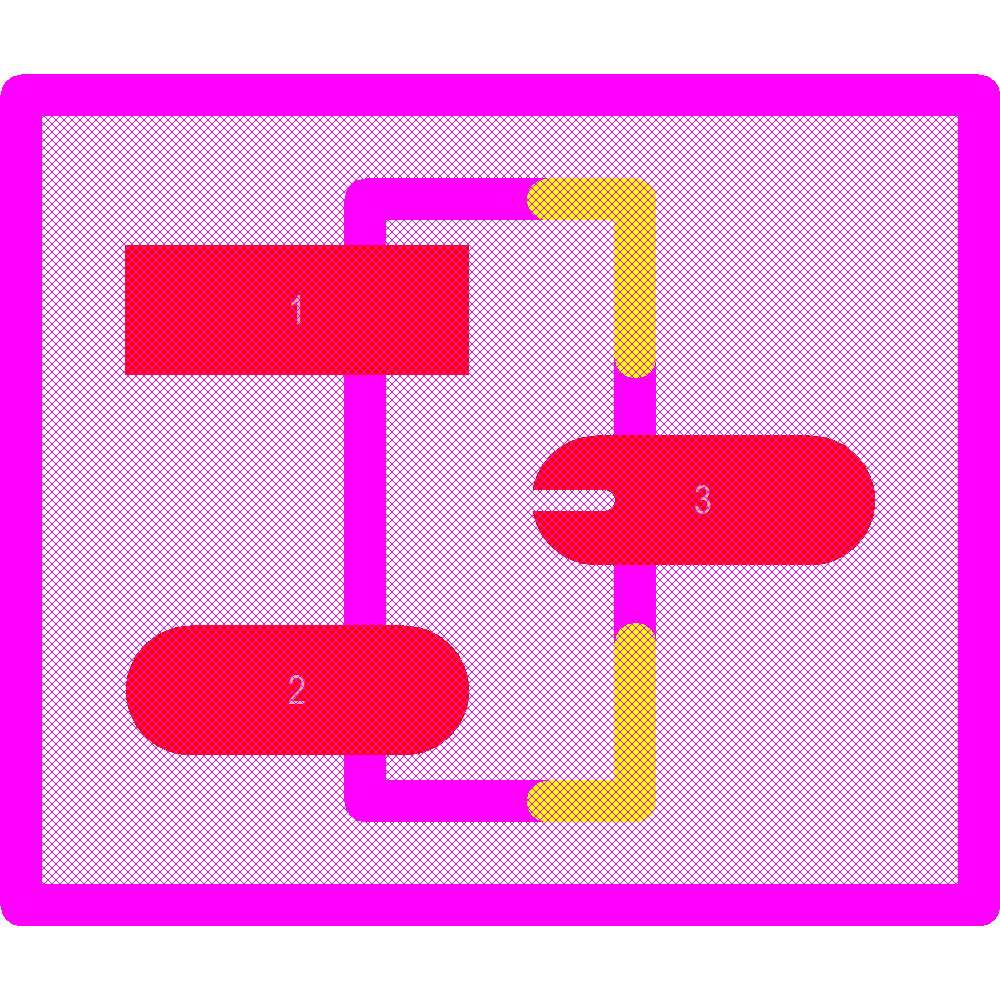

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
Diodes
BAS21-7-F
Volume Production
Diodes
BAS21T-7-F
Volume Production
onsemi
BAS21LT1G
Volume Production
Diodes
BAS21W-7-F
Volume Production
NXP Semiconductors
BAS21.235
Volume Production
onsemi
BAS21LT3G
Volume Production
NXP Semiconductors
BAS20
Not Recommended for New Design
Infineon
BAS21E6327HTSA1
End of Life
Vishay Semiconductors
BAS21-V-GS08
End of Life
Vishay Semiconductors
BAS20-V-GS08
Obsolete

See more alternatives See less alternatives
