Discrete Semiconductors  >  Diodes  >  Schottky Diodes

Diodes - BAS70W-04-7-F

BAS70W-04-7-F - Diodes

Diode Schottky 70V 0.07A 3-Pin SOT-323 T/R

 Datasheets

Technical Details

Average Rectified Current 70mA
Capacitance 2pF
Case/Package SOT-323
Current Rating 70mA
Forward Current 70mA
Forward Voltage 1V
Height 1mm
Lead Free Lead Free
Length 2.2mm
Max Forward Surge Current (Ifsm) 100mA
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Max Power Dissipation 200mW
Max Repetitive Reverse Voltage (Vrrm) 70V
Max Reverse Current 100nA
Max Reverse Voltage (DC) 70V
Mount Surface Mount
Number of Pins 3
Package Quantity 3000
Packaging Tape and Reel
Peak Non-Repetitive Surge Current 100mA
Power Dissipation 200mW
Power Rating 200mW
Radiation Hardening No
Reverse Recovery Time 5ns
RoHS Compliant Yes
Termination SMD/SMT
Voltage Rating (DC) 70V
Weight 0.000212oz
Width 1.35mm

Compliance

   RoHS : Compliant
   Radiation Hardening : No

Images

Diodes BAS70W-04-7-F | Verical

Verical

Diodes BAS70W-04-7-F | Future Electronics

Future Electronics

Diodes BAS70W-04-7-F | Digikey

Digikey

Diodes BAS70W-04-7-F | Rs

Rs

Datasheets

Digikey

Lifecycle Status Indicator

   Volume Production
 Loading indicators

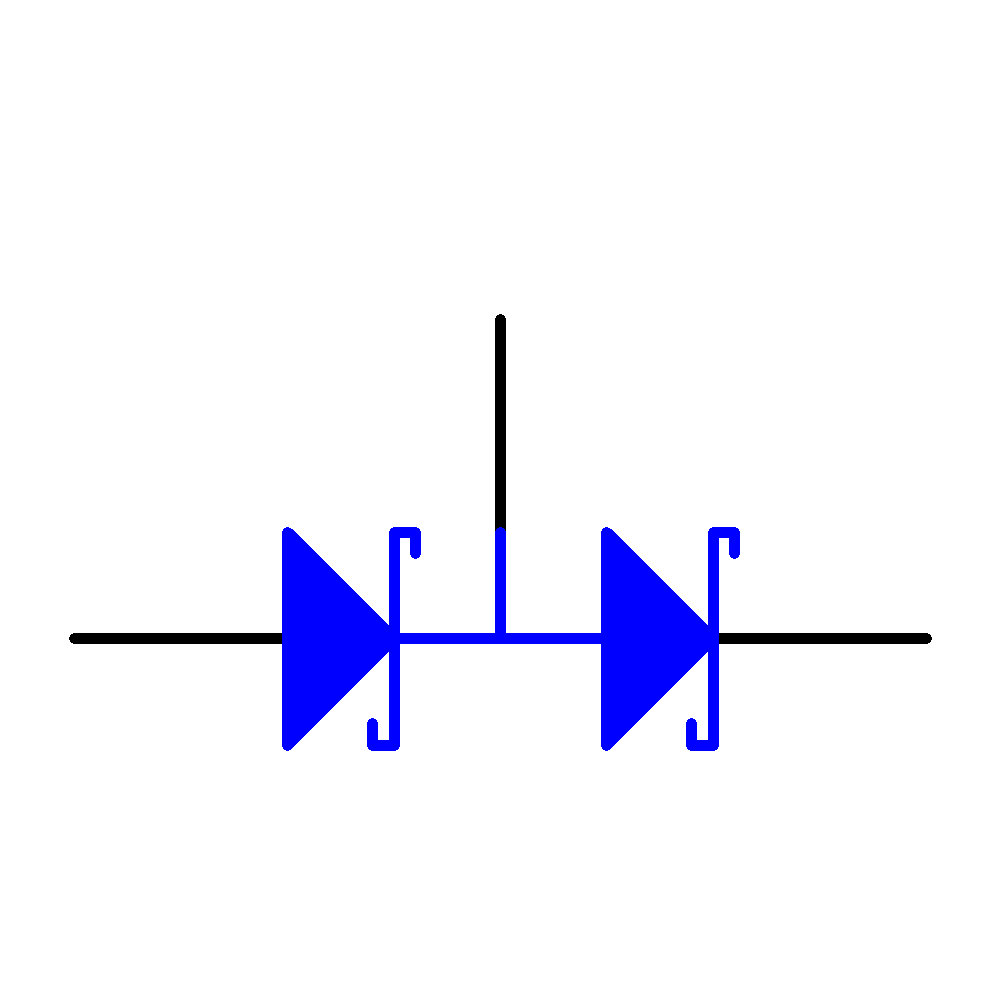

Symbol

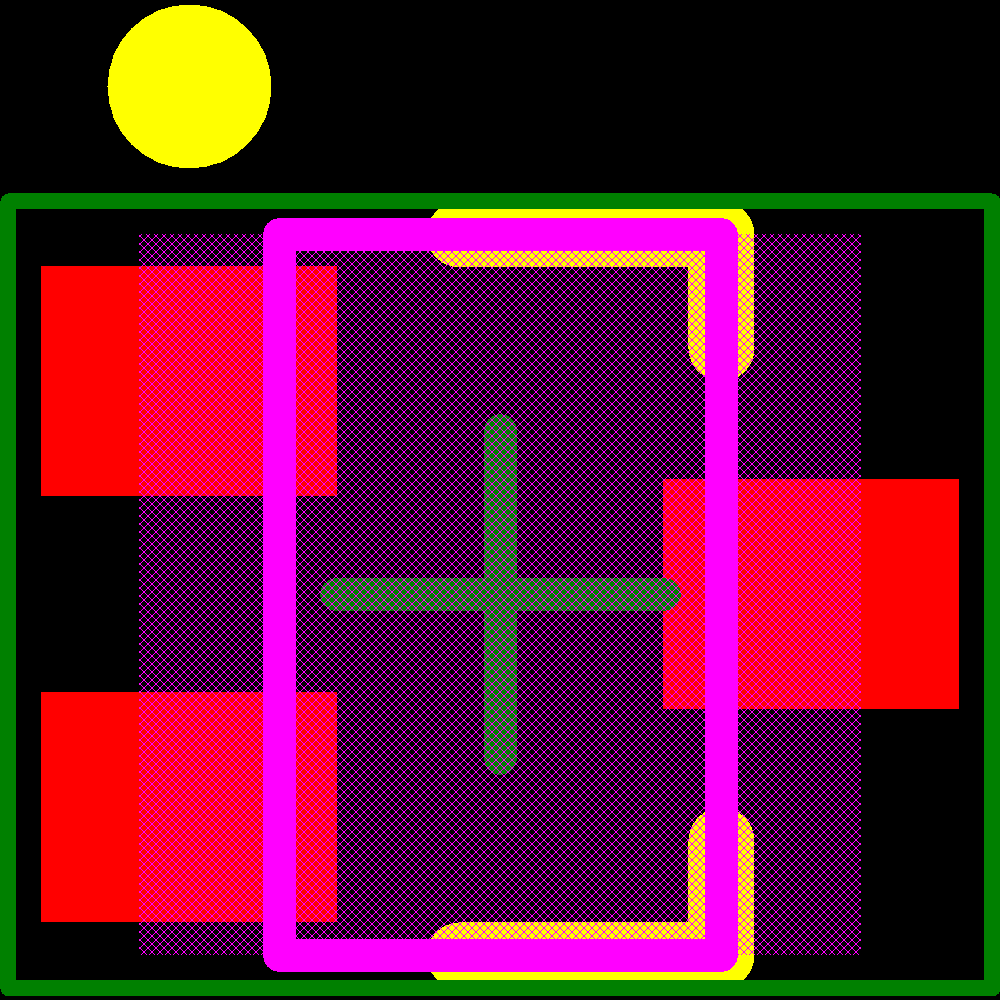

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
ON Semiconductor / Fairchild
BAT54C
Volume Production
Diodes
BAT54S-7-F
Volume Production
Diodes
BAS70-04-7-F
Volume Production
NXP Semiconductors
BAV199W115
Volume Production
NXP Semiconductors
BAT721S215
Volume Production
NXP Semiconductors
1PS70SB84115
Volume Production
ON Semiconductor
BAT54SLT1G
Volume Production
ON Semiconductor
BAS40-04LT1G
Volume Production
Infineon
BAS7004E6327HTSA1
Not Recommended for New Design
Diodes
BAS70-04T-7-F
Volume Production

See more alternatives See less alternatives
