ON Semiconductor - BAT54CLT1G

BAT54CLT1G - ON Semiconductor

DIODE ARRAY SCHOTTKY 30V SOT23-3

 Datasheets

Technical Details

Average Rectified Current 200mA
Capacitance 7.6pF
Case/Package SOT-23-3
Current Rating 200mA
Element Configuration Common Cathode
Forward Current 200mA
Forward Voltage 800mV
Halogen Free Halogen Free
Height 0.04inch
Lead Free Lead Free
Length 0.119inch
Max Forward Surge Current (Ifsm) 600mA
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Max Power Dissipation 225mW
Max Repetitive Reverse Voltage (Vrrm) 30V
Max Reverse Current 2uA
Max Reverse Leakage Current 2uA
Max Reverse Voltage (DC) 30V
Max Surge Current 600mA
Number of Pins 3
Package Quantity 3000
Packaging Tape and Reel
Peak Non-Repetitive Surge Current 600mA
Power Dissipation 225mW
Radiation Hardening No
Reach SVHC Compliant No
Recovery Time 5ns
Reverse Recovery Time 5ns
Reverse Voltage 30V
RoHS Compliant Yes
Voltage Rating (DC) 30V
Width 0.055inch

Compliance

   RoHS : Compliant
   Radiation Hardening : No

Images

ON Semiconductor BAT54CLT1G | Arrow Electronics

Arrow Electronics

ON Semiconductor BAT54CLT1G | Rs

Rs

ON Semiconductor BAT54CLT1G | Element14

Element14

ON Semiconductor BAT54CLT1G | Future Electronics

Future Electronics

Datasheets

Verical
Avnet
Digikey

Lifecycle Status Indicator

   Volume Production
 Loading indicators

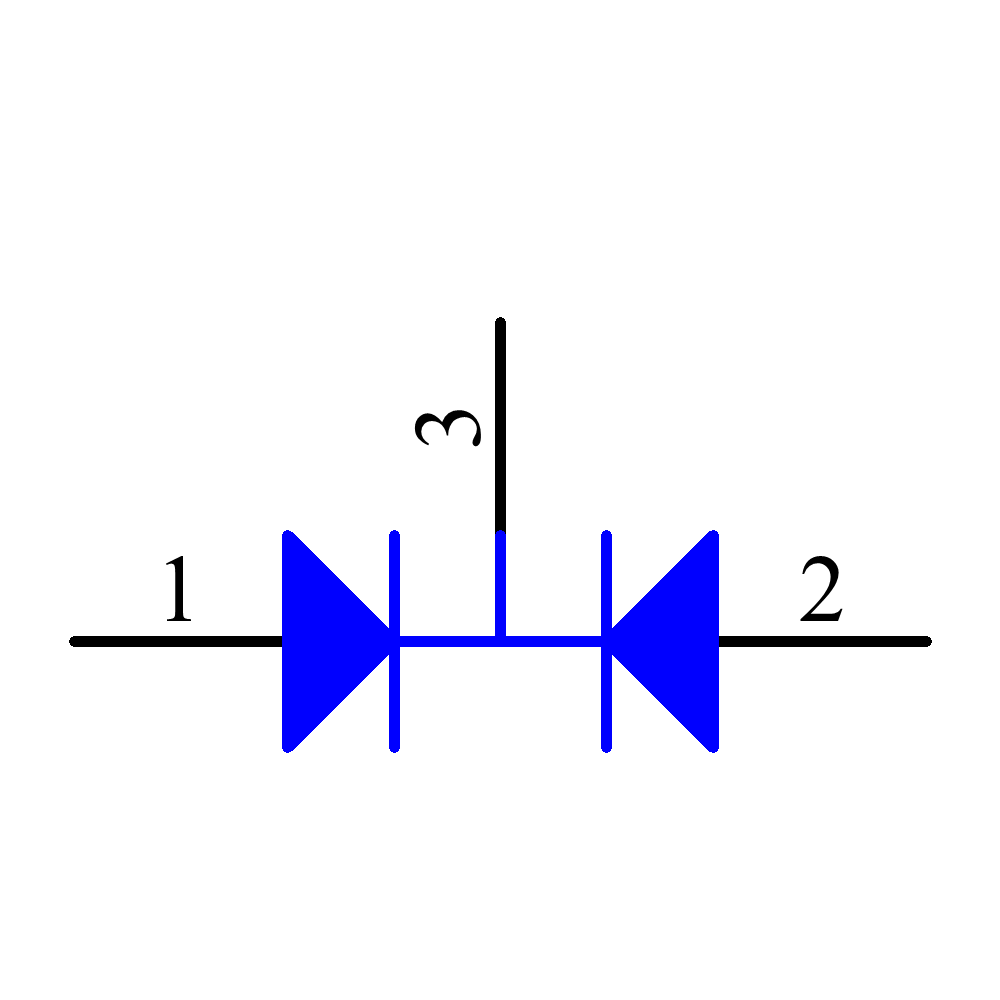

Symbol

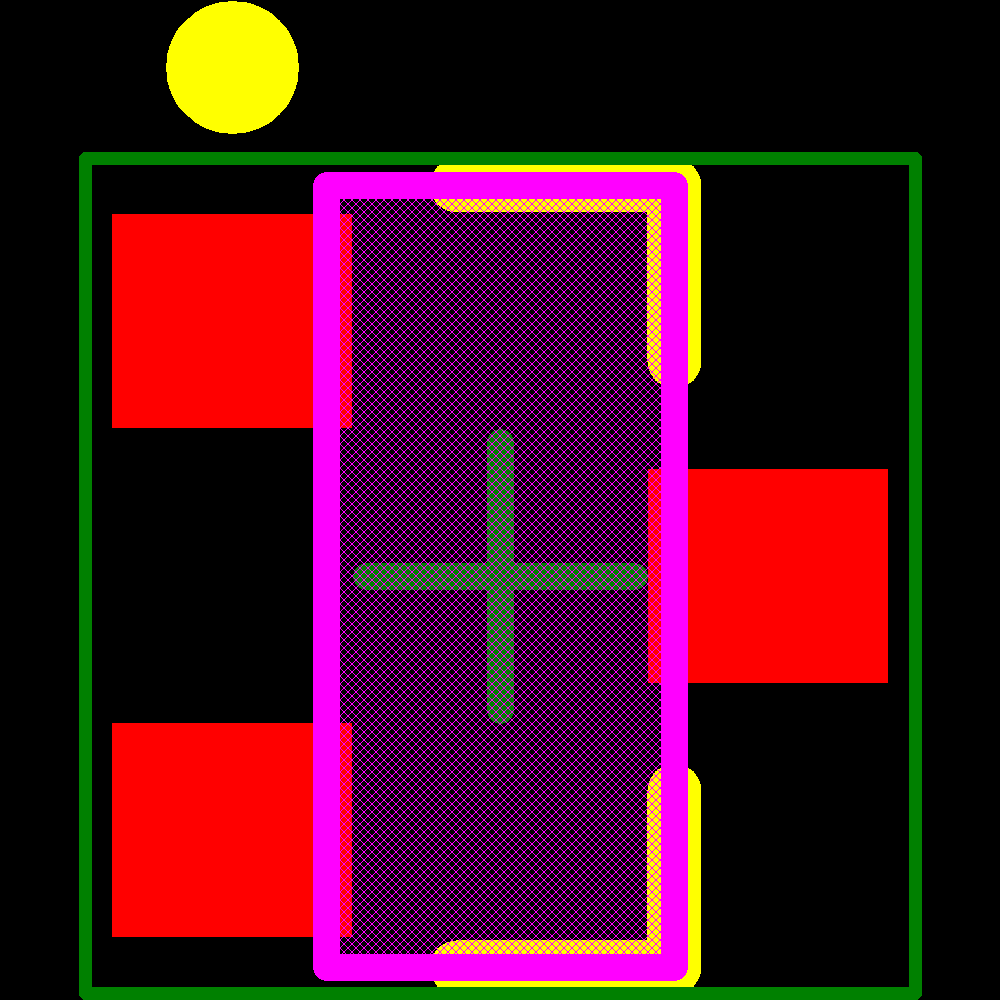

Footprint
