SMAJ12CA - Bourns
DO-214AC SMA SMAJ 1 Surface Mount Zener Tvs Diode 14.7V 5muA 400W -55C~150C TJ
Technical Details
| Breakdown Voltage | 14V |
| Case/Package | SMA |
| China RoHS | Non-Compliant |
| Clamping Voltage | 19.9V |
| Composition | Zener |
| Contact Plating | Tin |
| Country of Origin | Taiwan |
| Direction | Bidirectional |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Element Configuration | Single |
| ESD Protection | Yes |
| Height | 2.62mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.10.00.50 |
| Introduction Date | 2010-02-23 |
| Leakage Current | 5µA |
| Length | 4.57mm |
| Lifecycle Status | Production |
| Max Breakdown Voltage | 14.7V |
| Max Junction Temperature (Tj) | 150°C |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 1W |
| Max Reverse Leakage Current | 5µA |
| Max Surge Current | 40A |
| Min Breakdown Voltage | 13.3V |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Pins | 2 |
| Number of Terminals | 2 |
| Operating Supply Voltage | 3.5V |
| Packaging | Tape & Reel |
| Peak Pulse Current | 20.1A |
| Peak Pulse Power | 400W |
| Peak Reverse Current | 5µA |
| Polarity | Bidirectional |
| Power Line Protection | No |
| REACH SVHC | No |
| Reverse Breakdown Voltage | 13.3V |
| Reverse Standoff Voltage | 12V |
| RoHS | Compliant |
| Schedule B | 8541100080 |
| Termination | SMD/SMT |
| Test Current | 1mA |
| Width | 2.92mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : No

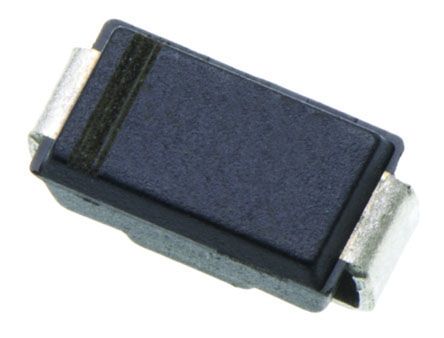

Images
RS
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| EIC Semiconductor | Production | ||
| Vishay | Production | ||
| Littelfuse | Obsolete | ||
| Taiwan Semiconductor | Production | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete | ||
| Littelfuse | Production | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete | ||
| Vishay | Obsolete |
